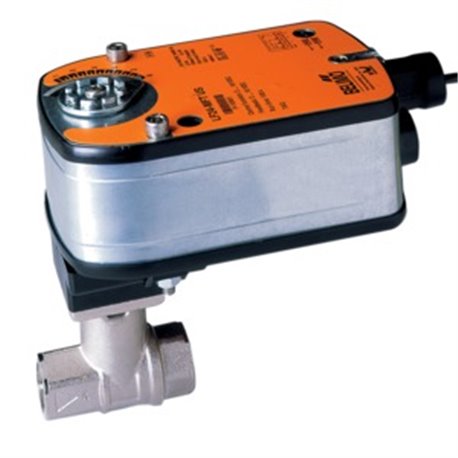

Belimo B216+LF24-3-S CCV 0.5 2 Way 16 Cv w/ Spg Rtn 24V

Product Description

The Belimo B216+LF24-3-S is a two-way control valve with a flow coefficient of 16 Cv, designed for use in heating, cooling, or chilled water systems. This valve operates on a 24V electrical supply and features a spring return actuator. It is suitable for applications that require precise flow control, especially where low pressure is a consideration.

• Spring return actuator for reliable operation
• Compatible with chilled or hot water systems
• Internal thread end fitting for easy installation

Product Highlights

This valve is designed to provide optimal flow control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B216+LF24-3-S

Technical Specifications

• Valve Size: 0.5 inches [15]
• Flow Coefficient (Cv): 16
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: Two-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24V
