BELIMO B215HT455+TR24-SR CONTROL & CIRCUIT BOARDS
BELIMO B215HT455+TR24-SR CONTROL & CIRCUIT BOARDS

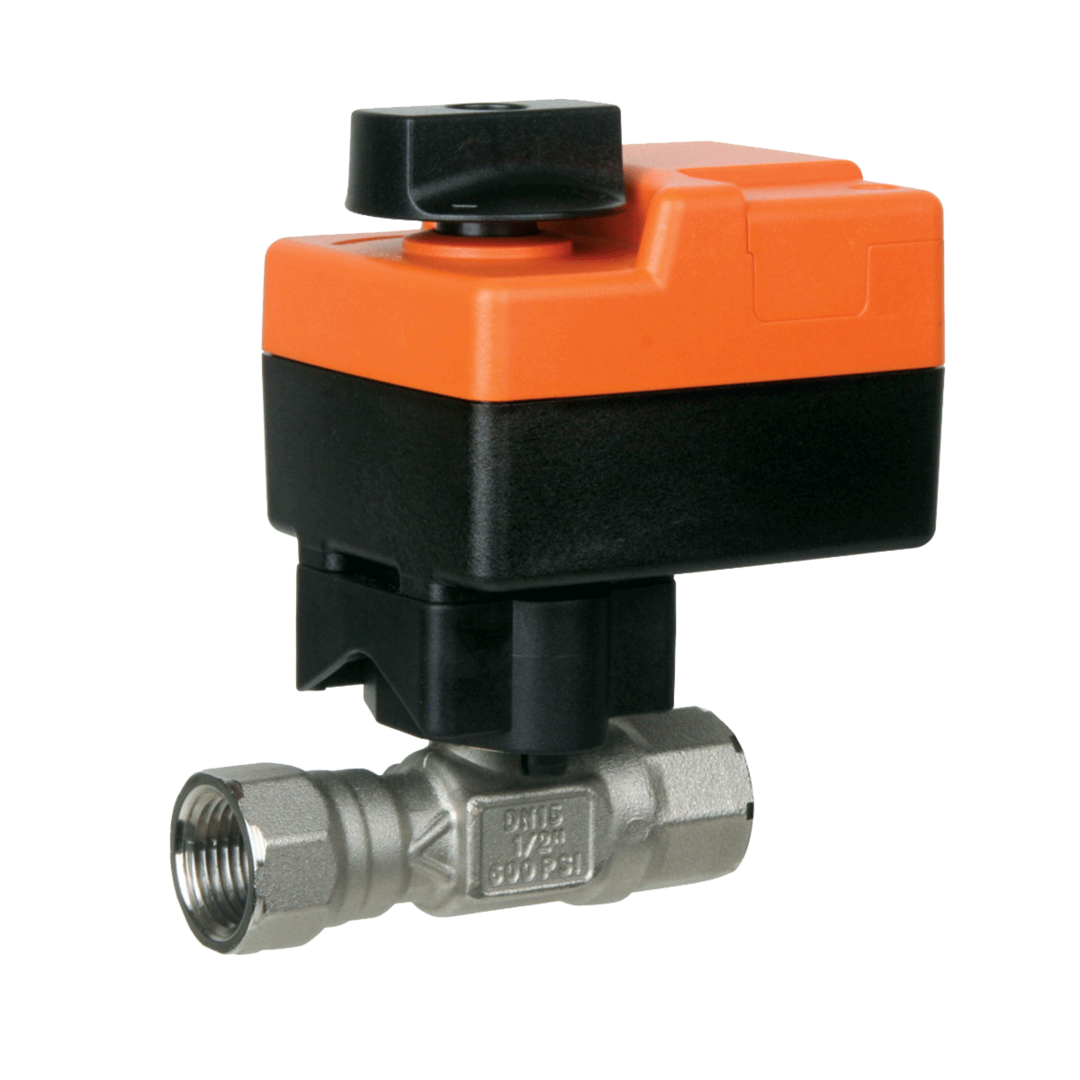

Belimo B215HT455+TR24-SR | HTCCV | 0.5 | 2 Way | 4.55 Cv | w/ Non-Spg | 24V | 2-10V

BELIMO
Brand: BELIMO
SKU: B215HT455+TR24-SR
Ships in 4 - 5 Weeks
Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
$360.47
$360.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Belimo B215HT455+TR24-SR is a reliable two-way valve designed for precise control in various heating and cooling applications. This product features a Cv rating of 4.55, which makes it suitable for handling a range of fluid flows. The valve operates with a non fail-safe actuator, utilizing a 24V DC control type to regulate flow effectively.

  • Two-way operation for effective control.
  • High temperature resistance for fluids up to sixty percent glycol.
  • Compact valve size of 0.5 inches.

Product Highlights

This valve is ideal for use in HVAC systems and offers reliable performance in both hot water and low-pressure steam systems.

Product Information

Standard Information

  • Brand: Belimo
  • MPN: B215HT455+TR24-SR
Technical Specifications
Angle of Rotation
90 degrees
Controllable Flow Range
75B0
Cv
4.55
End Fitting
Internal thread
Fluid
High temperature hot water/low pressure steam up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5 inches (15 mm)
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP40 NEMA1
Electrical Connection
Cable
Manual Override
Push down handle
Power Consumption (Running)
0.5 Watts
Running Time (Motor)
90 seconds for 90 degrees
Voltage AC/DC
24 Volts
