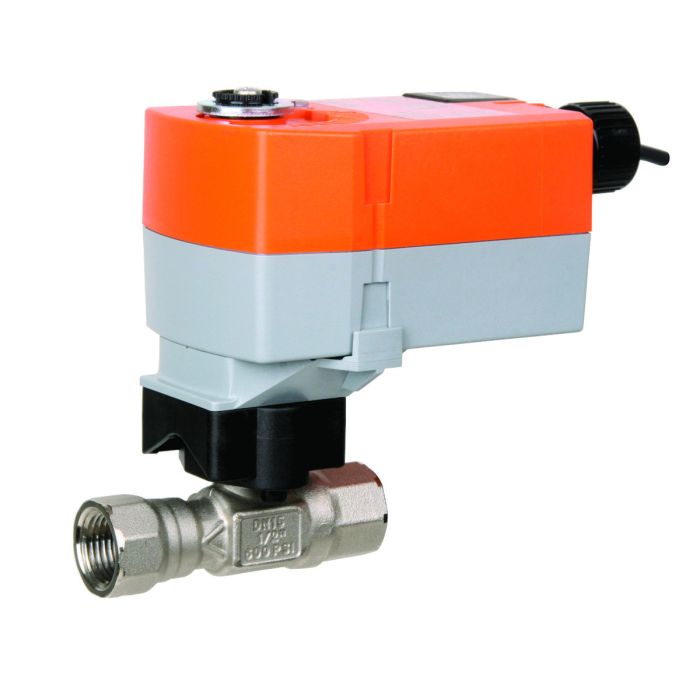

Belimo B215HT455+TFRX24-MFT HTCCV Assembly, 2 Way, 1/2 in. NPT

Product Description

Belimo B215HT455+TFRX24-MFT is an HTCCV assembly designed for efficient flow control in HVAC systems. This product features a nickel plated brass body and stainless steel components, ensuring durability in high-temperature applications.

• 2-way control valve for precise flow regulation
• Torque rating of 22 in-lb, suitable for demanding applications
• Compatible with 24 VAC systems, offering versatility in installations

Product Highlights

This valve is ideal for environments requiring strict temperature control and low pressure steam conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B215HT455+TFRX24-MFT

Technical Specifications

• Cv: 4.55
• Close-Off Pressure: 200 kPa
• Power Consumption: 2.5 W Running, 1 W Holding
• Electrical Connection: 3 ft. or 10 ft. cables
• Operating Conditions: -22 F to 122 F
• Fluid Type: High temperature hot water/low pressure steam up to 60% glycol
• Valve Size: 0.5 inches
• Degree of Protection: IP42
