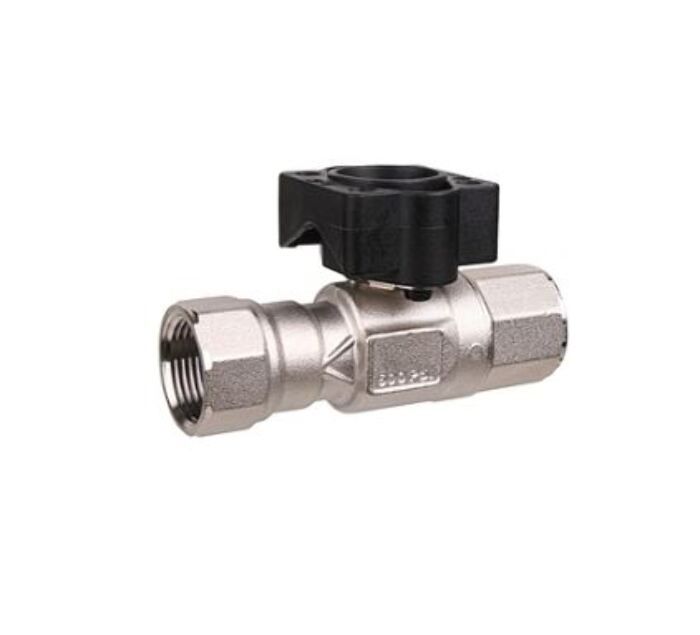

Belimo B215HT455 HTCCV 2 Way 1/2 in NPT 4.55 Cv

Product Description

The Belimo B215HT455 is a high temperature characterized control valve designed for efficient flow control in HVAC applications. This valve features a nickel plated brass body and a stainless steel ball stem which enhances durability. The B215HT455 is suited for high temperature hot water and low pressure steam applications, up to sixty percent glycol. It is a two-way valve that facilitates easy installation with internal threading.

• Nickel plated brass body for corrosion resistance
• Stainless steel ball stem for enhanced durability
• Compatible with high temperature hot water and glycol mixtures

Product Highlights

This product is ideal for HVAC control applications where reliable flow management is essential. With a Cv rating of 4.55, it efficiently manages flow while ensuring consistency and stability.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B215HT455

Technical Specifications

• Valve Size: 0.5 inches
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Fluid Compatibility: High temperature hot water/low pressure steam up to 60% glycol
• Controllable Flow Range: 75B0
• End Fitting: Internal thread
