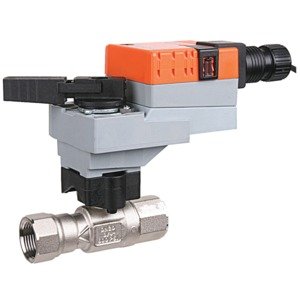

Belimo B215HT186+LRB24-SR Characterized Control Valve 0.5 inches 2-Way 1.86cv Non-Spring 24V Modulating

Product Description

The Belimo B215HT186+LRB24-SR is a precision-engineered characterized control valve designed for optimal performance in various industrial settings. This valve provides accurate flow control with its 0.5 inches 2-way configuration and 1.86 Cv, suitable for applications involving high temperature hot water and low pressure steam up to 60% glycol. It features a non-spring return actuator and operates on a 24V modulating control signal.

• Designed for efficiency and reliability in controlling fluid flow.
• Robust stainless steel trim ensures durability and long service life.
• Easy installation with internal thread end fittings and manual override functionality.

Product Highlights

This valve's compact design ensures ease of installation in confined spaces, making it a preferred choice for many HVAC professionals. It operates efficiently with an IP54 rating, indicating a high level of protection against dust and water ingress.

Product Information

Standard Information

• Brand: Belimo
• MPN: B215HT186+LRB24-SR

Technical Specifications

• Valve Size: 0.5 inches
• Flow Coefficient (Cv): 1.86
• Voltage: AC/DC 24V
• Actuator Type: Non fail-safe
• Control Type: DC 2 to 10 V
• Manual Override: External push button
• Electrical Connection: cable
• Protection: IP54, NEMA 2 UL Enclosure Type 2
