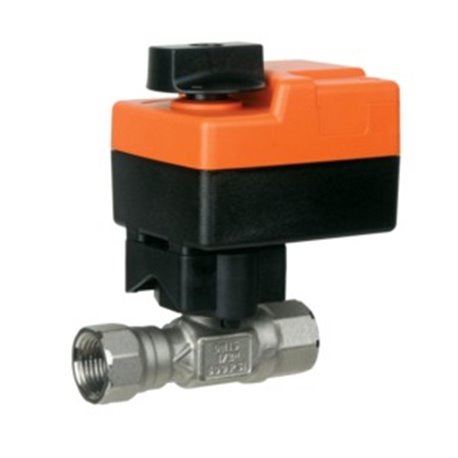

Belimo B215HT073+TR24-SR | HTCCV | 0.5 | 2 Way | 0.73 Cv | w/ Non-Spg | 24V | 2-10V

Product Description

The Belimo B215HT073+TR24-SR is a two-way valve designed for use in high temperature hot water or low pressure steam systems. It operates at a valve size of half inch with a flow coefficient of 0.73 Cv. This model features a non-spring return actuator with a voltage of twenty-four volts and a control range of two to ten volts.

• Angle of Rotation: 90 degrees
• Trim Material: Stainless Steel
• Electrical Connection: Cable

Product Highlights

This valve is suitable for various HVAC applications where precise flow control is required, particularly in heating and cooling systems.

Product Information

Standard Information

• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way

Technical Specifications

• CV: 0.73
• Control Type: DC 2...10 V
• Manual Override: Push down handle
• Power Consumption: 0.5 W
• Running Time: 90 seconds / 90 degrees
• Voltage: AC/DC 24 V
