Belimo B215HT073+TR24-3 | HTCCV | 0.5 | 2 Way | 0.73 Cv | w/ Non-Spg | 24V | Floating

Product Description

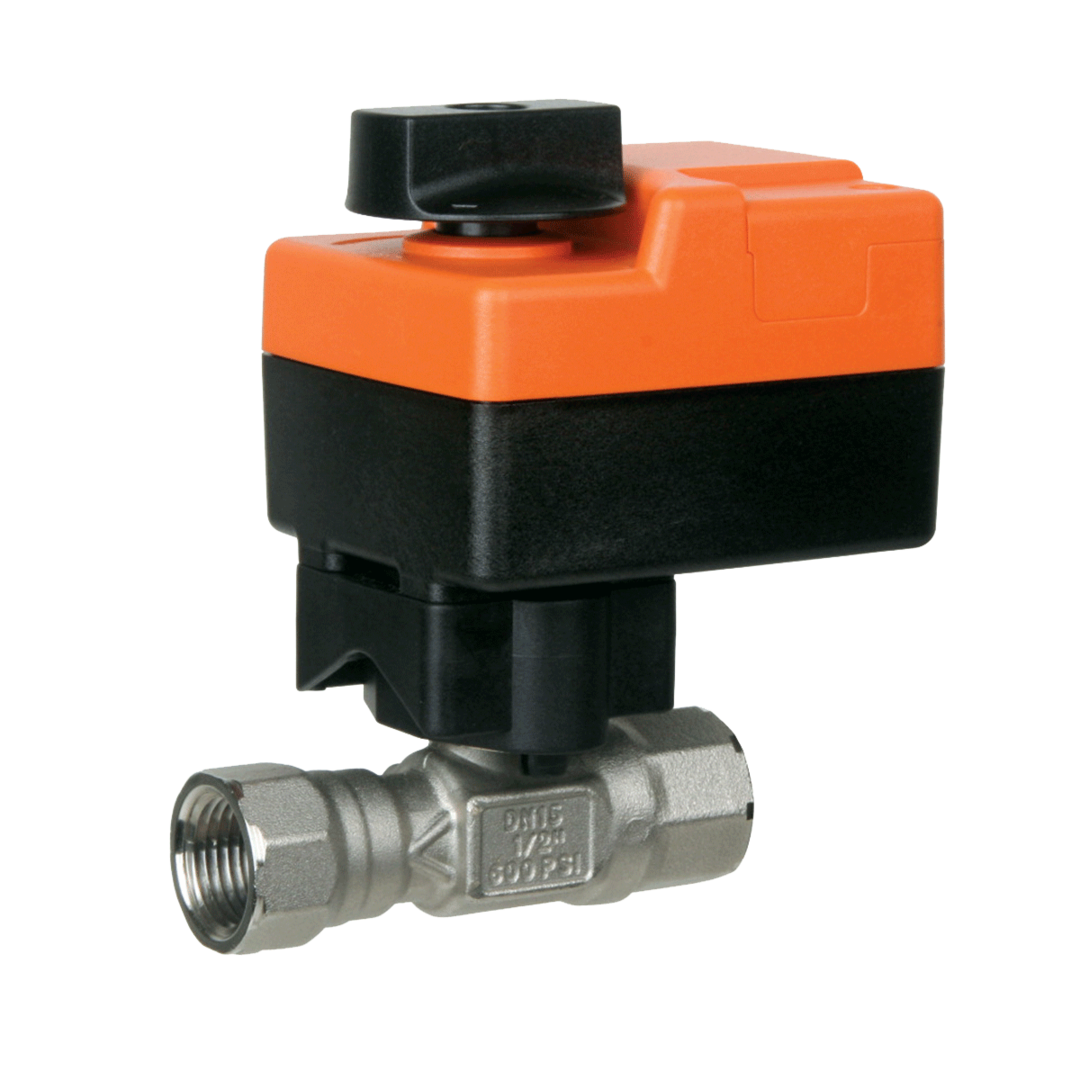

The Belimo B215HT073+TR24-3 is a two-way control valve designed for high temperature hot water and low pressure steam applications. It features a Cv value of 0.73, making it suitable for various fluid flow requirements. The valve operates on 24 volts and has a control type that is floating or three-point. This valve is designed with stainless steel trim for durability and has internal thread end fittings for easy installation.

• Suitable for high temperature hot water and low pressure steam.
• Stainless steel trim and internal thread fittings.
• Works on 24V with a floating control type.

Product Highlights

This valve is ideal for applications requiring precise flow control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B215HT073+TR24-3

Technical Specifications

• Valve Size: 0.5 inches
• Pattern: 2-way
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Angle of Rotation: 90 degrees
• Pressure Independent: No
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• Voltage AC/DC: AC 24V
• Power Consumption: 1 W
• Running Time (Motor): 90 seconds
• Degree of Protection: IP40 NEMA 1
