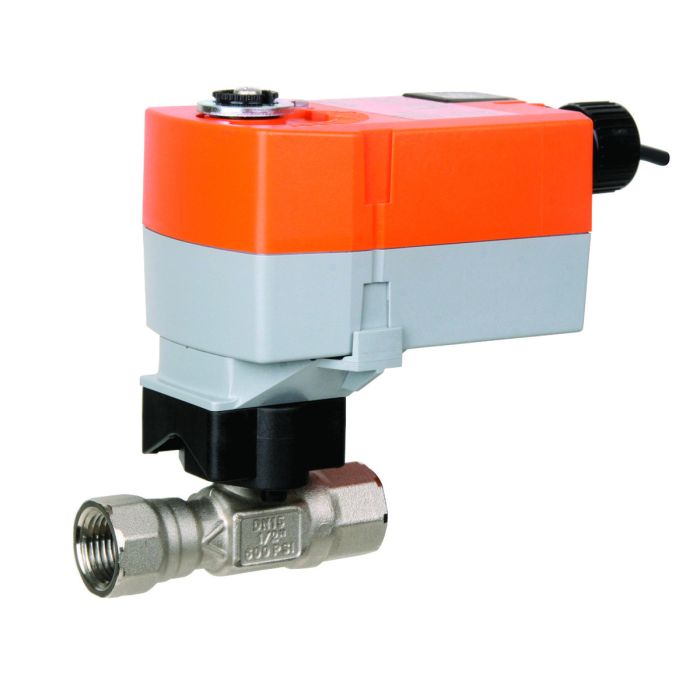

Belimo B215HT073+TFRB24-SR HTCCV Assembly 2 Way 1/2 in NPT

Product Description

The Belimo B215HT073+TFRB24-SR is a high temperature characterized control valve designed for use in HVAC systems. This two-way valve features a nickel plated brass body, stainless steel ball stem, and a flow coefficient of 0.73 Cv. It operates with a direct coupled actuator rated at 22 in-lb and is modulating with spring return functionality using a 24 VAC power supply. Ideal for controlling high temperature hot water or low pressure steam applications, it supports a control signal range of 2 to 10 VDC or 4 to 20 mA.

• Durable nickel plated brass body
• Spring return actuator with 24 VAC
• Suitable for high temperature hot water and low pressure steam

Product Highlights

This valve assembly is a dependable solution for HVAC control, ensuring efficient system performance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B215HT073+TFRB24-SR

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: High Temperature Hot Water/Low Pressure Steam, Up To 60% Glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Power Consumption: 2 W Running, 1 W Holding
• Trim: Stainless steel
