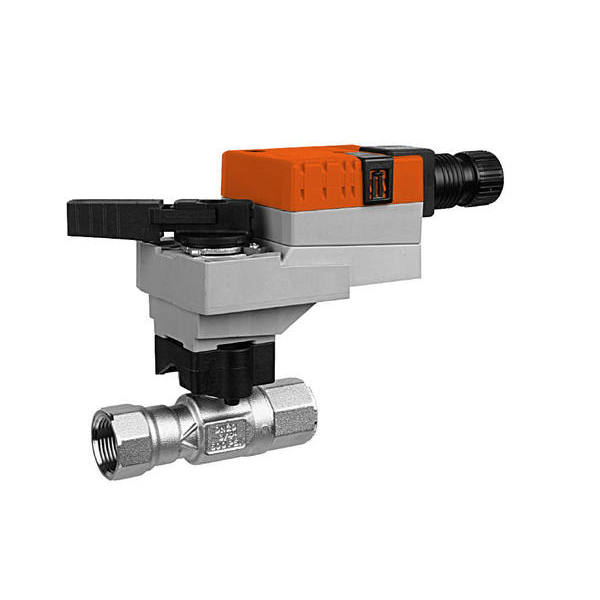

Belimo B215HT073+LRB24-SR HTCCV Assembly, 2 Way, 0.73 Cv with Non-Spg

Product Description

The Belimo B215HT073+LRB24-SR is a high-temperature characterized control valve designed for building automation systems. This valve allows modulating control of fluids in HVAC applications. It features a nickel-plated brass body and a stainless steel ball stem, ensuring durability and reliability in demanding environments. The valve operates on 24 VAC or DC with a control signal range of 2 to 10 VDC or 4 to 20 mA.

• 0.73 Cv for effective flow management
• Compatible with high temperature hot water and low pressure steam up to 60% glycol
• Non fail-safe actuator for precise control

Product Highlights

This valve is ideal for applications requiring precise control of fluid flow and temperature regulation in commercial heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B215HT073+LRB24-SR

Technical Specifications

• Cv: 0.73
• Valve Size: 0.5 inches
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Control Type: DC 2 to 10 V
• Actuator Type: Non fail-safe
• Electrical Connection: cable
• Power Consumption (Running): 1.5 W
• Degree of Protection: IP54 NEMA2 UL Type 2
