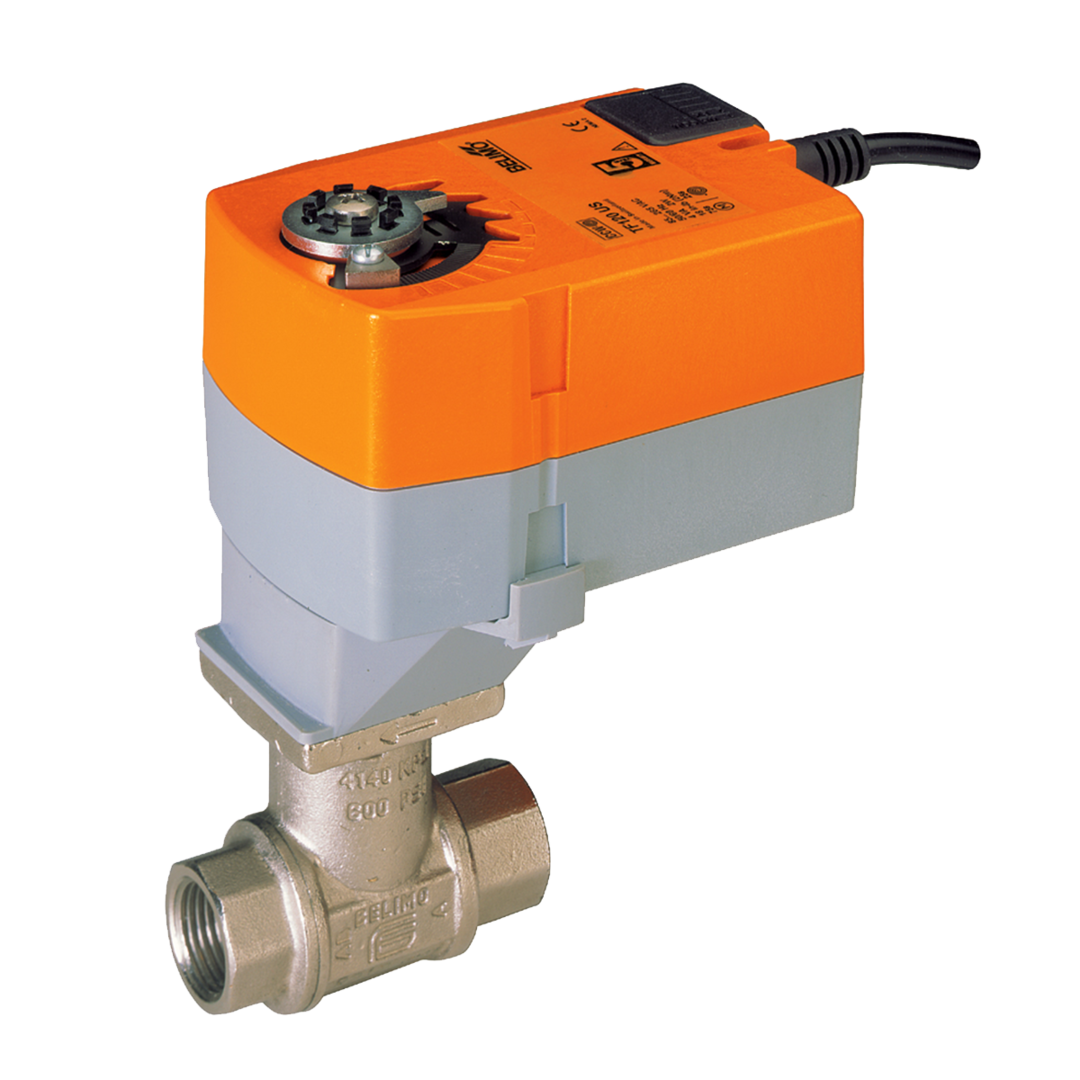

Belimo B215B+TFRB24-3 CCV Assembly 2 Way 1/2 in NPT 10 Cv

Product Description

The Belimo B215B+TFRB24-3 is a reliable two-way control valve assembly designed for efficient flow management in HVAC systems. It features a characteristically controlled valve, a nickel-plated brass body, and a chrome-plated brass ball for durability. The actuator operates with a spring return mechanism, requiring 24 volt AC or DC for control.

• Direct coupled actuator with spring return
• Compatible with chilled or hot water up to 60% glycol
• Ideal for automated HVAC control

Product Highlights

This control valve is engineered for optimal performance. It offers easy installation and integration into existing systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B215B+TFRB24-3

Technical Specifications

• Valve Size: 0.5 inches (15 mm)
• Cv: 10
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• End Fitting: Internal thread
• Control Type: Floating/3-point
• Actuator Type: Spring return
• Voltage AC/DC: 24 V
