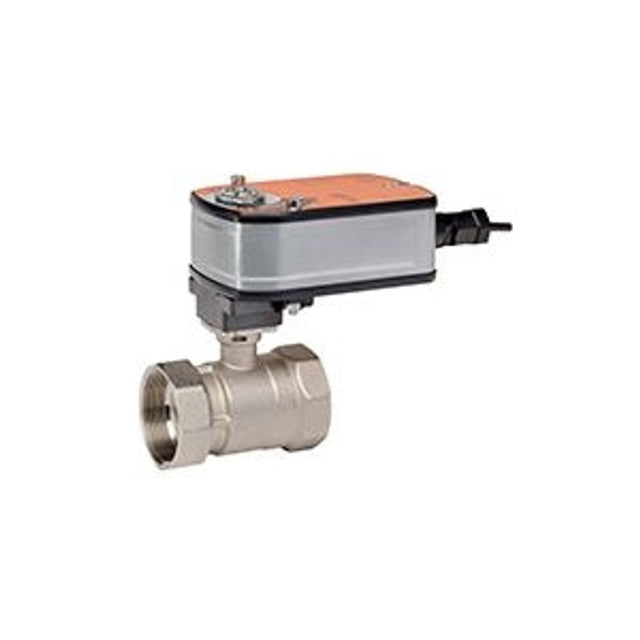

Belimo B215B+LF24 CCV 0.5 2 Way 10 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B215B+LF24 is a two-way control valve that operates at 24 volts and is designed for precise flow control in various HVAC applications. It features a spring return design suitable for heating and cooling systems. This valve is commonly utilized in air handling units and fan coil units.

• 2-way valve suitable for hydronic systems
• Spring return actuator for reliable operation
• Optimal for variable flow applications

Product Highlights

This valve is ideal for applications in air handling units and unit ventilators, ensuring efficient performance in temperature control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B215B+LF24

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: 24 V
