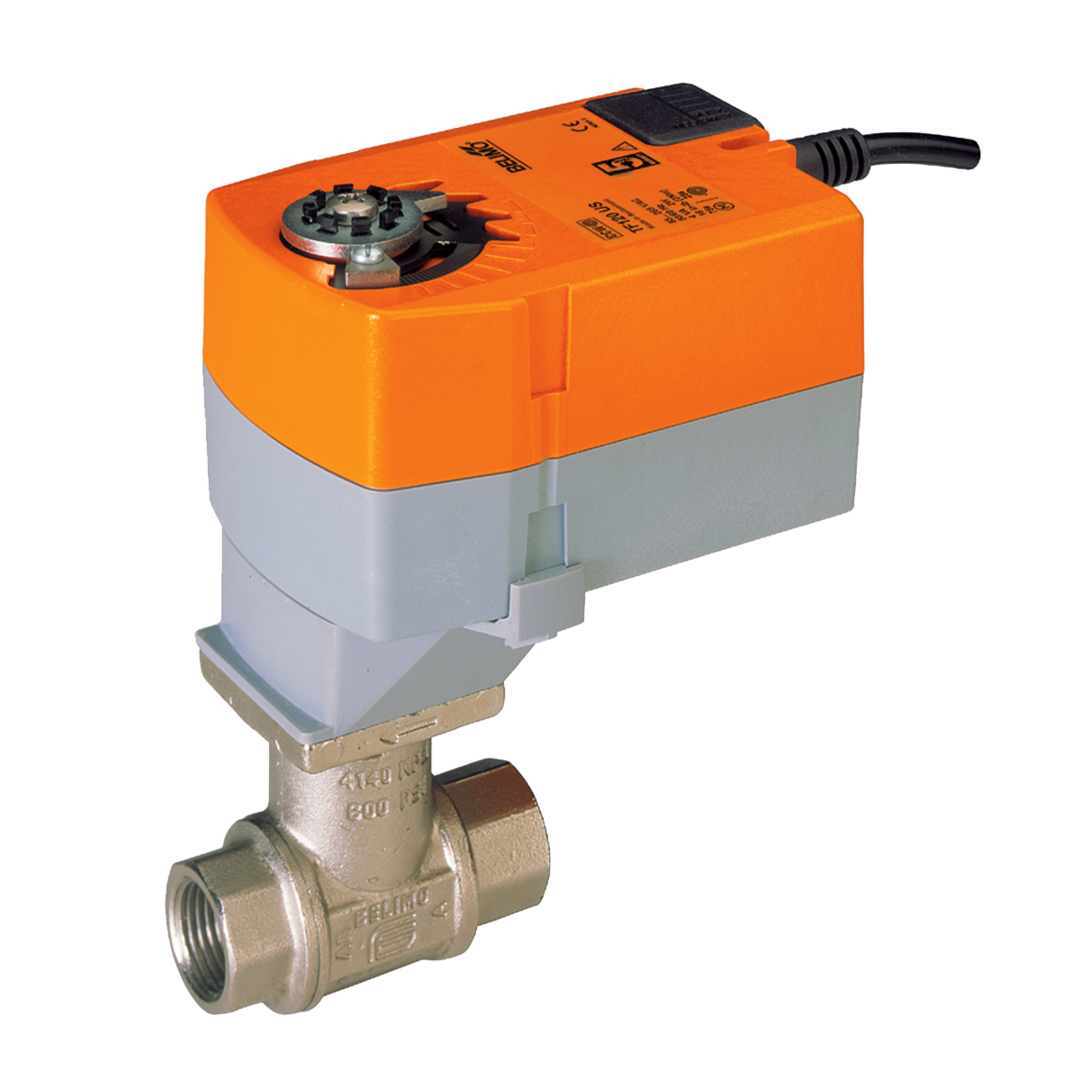

Belimo B215+TFRB24-3 CCV Assembly 2 Way 1/2 In NPT 10 Cv

Product Description

The Belimo B215+TFRB24-3 is a characterized control valve designed for HVAC systems. This valve is constructed with a nickel-plated brass body, providing durability and resistance to corrosion. It features a direct coupled actuator that operates on 24 volts AC or DC. The valve utilizes a spring return mechanism, ensuring efficient operation for both on/off and floating control applications.

• Valve Size: 1/2 inch NPT
• Cv Rating: 10
• Spring Return Actuator

Product Highlights

The B215+TFRB24-3 is ideal for controlling chilled or hot water systems, accommodating up to 60 percent glycol. It is suitable for HVAC applications requiring precise flow control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B215+TFRB24-3

Technical Specifications

• Angle of Rotation: 95 degrees
• Controllable Flow Range: 75 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Control Type: Floating/3-point
• Voltage AC/DC: 24 volts
• Power Consumption: 1 W (holding), 2.5 W (running)
