Belimo B215+LRB24-MFT CCV Assembly 2 Way 1/2 in NPT 10 Cv

Product Description

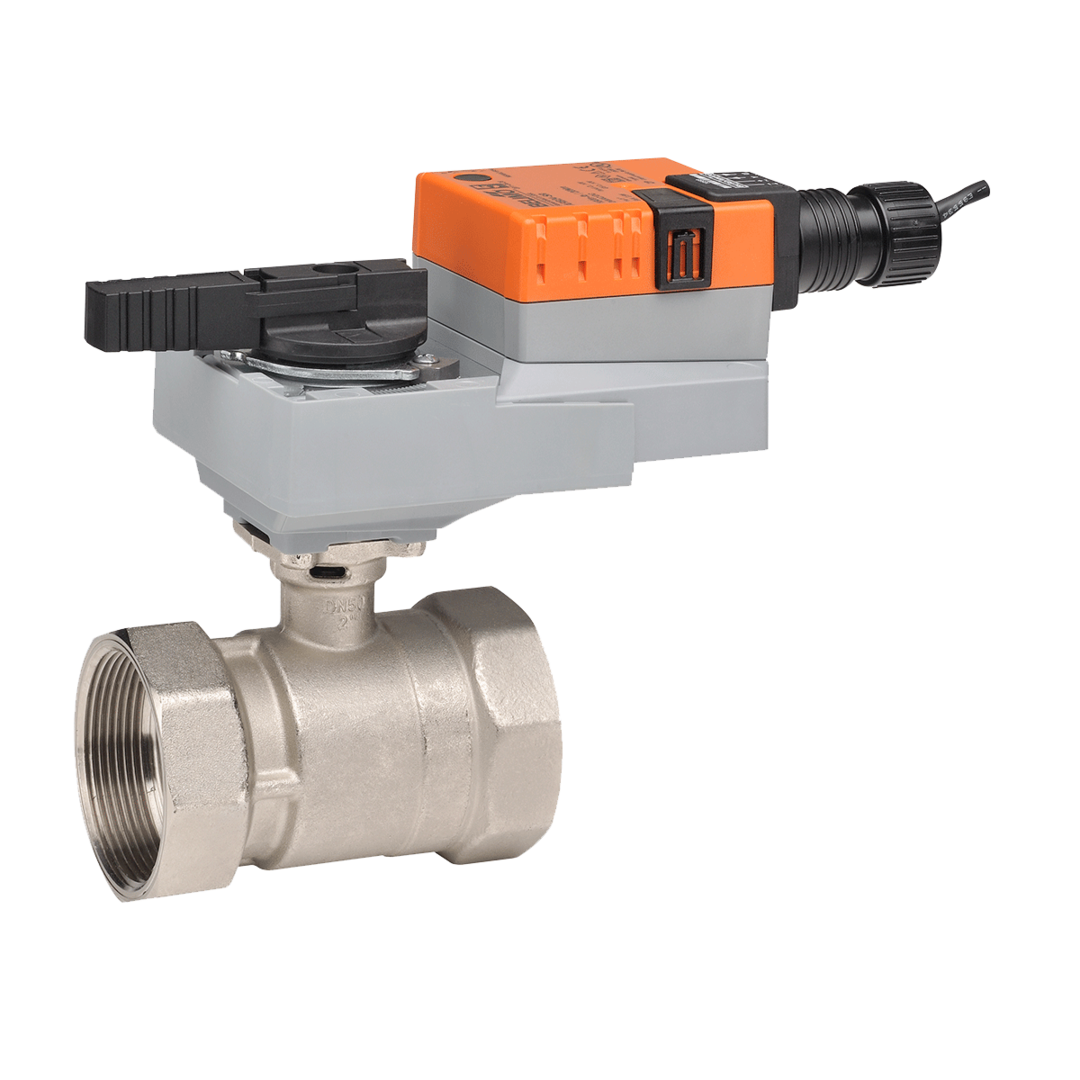

The Belimo B215+LRB24-MFT is a characterized control valve with a nickel-plated brass body designed for HVAC systems. It features a stainless steel ball and stem, making it durable and reliable. The valve has a direct coupled actuator and operates on a voltage of twenty-four VAC or DC. This model is part of the multi-function technology, catering to various applications in HVAC control.

• Designed for chilled or hot water systems.
• Non-fail-safe actuator for consistent performance.
• Compact size with a flow coefficient of ten Cv.

Product Highlights

This valve is used for regulating fluid flow in heating and cooling systems, ensuring efficiency and reliability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B215+LRB24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 to 0
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5 inches [15]
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Manual Override: External push button
• Power Consumption (Holding): 1.2 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: 24 V
