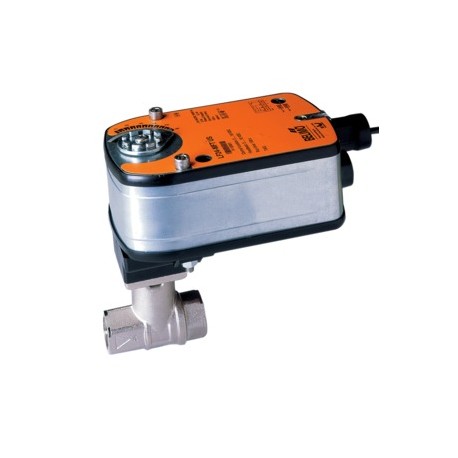

Belimo B215+LF24-MFT | CCV | 0.5 | 2 Way | 10 Cv | w/ Spg Rtn | 24V | MFT

Product Description

The Belimo B215+LF24-MFT is a control valve designed for use in heating and cooling systems. It operates effectively in air handling units and fan coil units. This valve supports a variety of applications, including unit ventilators and variable air volume box reheat coils.

• Two-way valve pattern for versatility
• Spring return actuator for reliable operation
• Suitable for hydronic systems with variable flow

Product Highlights

This control valve provides dependable performance in climate control systems, effectively managing chilled or hot water flow with up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: B215+LF24-MFT

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 10
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
