Product Description

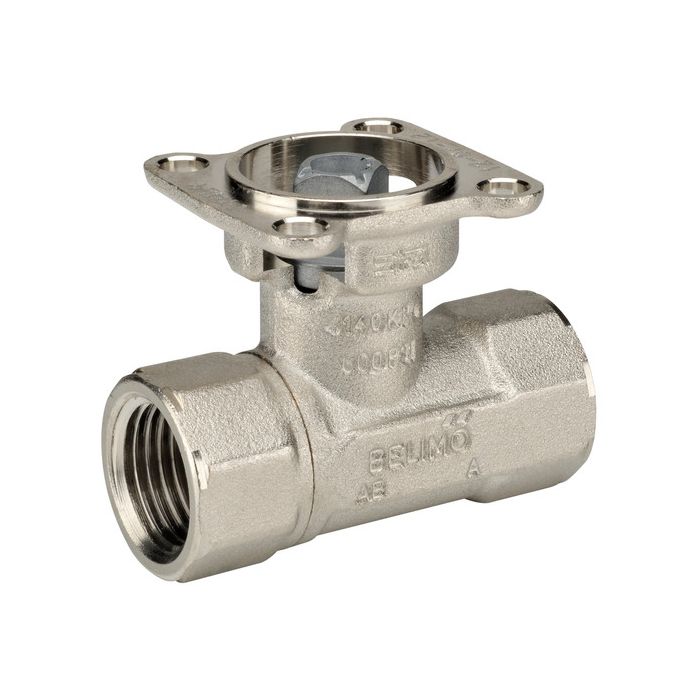

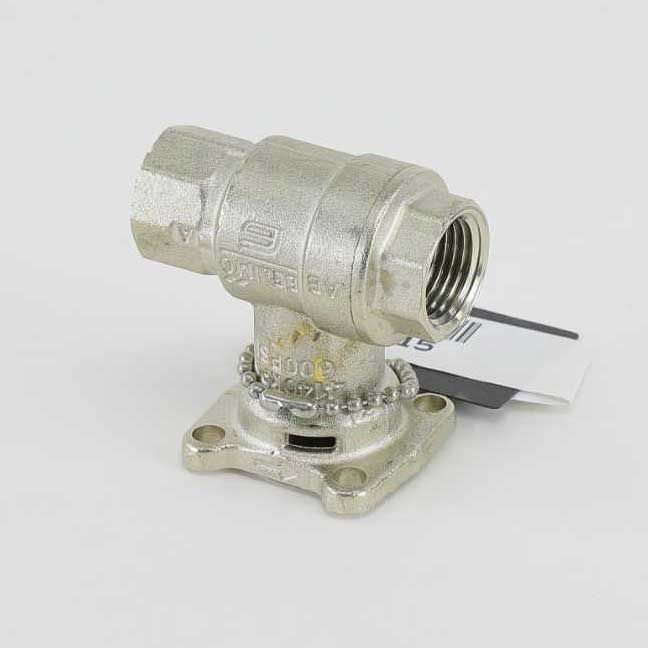

The Belimo B215 Characterized Control Valve is designed for various applications in HVAC systems. The valve features a 2-way configuration, making it suitable for use in air handling units and fan coil units for both heating and cooling systems. The B215 is optimized for variable flow in hydronic systems, ensuring greater control and efficiency.
- Compatible with hydronic systems
- 2-way configuration
- Stainless steel trim for durability
Product Highlights
The Belimo B215 Characterized Control Valve offers precise control for HVAC applications. It is built with stainless steel trim and internal threading, making it a robust choice for chilled or hot water systems.
Product Information
Standard Information
Technical Specifications
-
Controllable Flow Range: 75B0
-
Cv: 10
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Stainless steel
-
Valve Size: 0.5 inches (15 mm)
-
Close Off Pressure: 200 psi
-
Body Pressure Rating: 600 psi
-
Country of Origin: Italy
