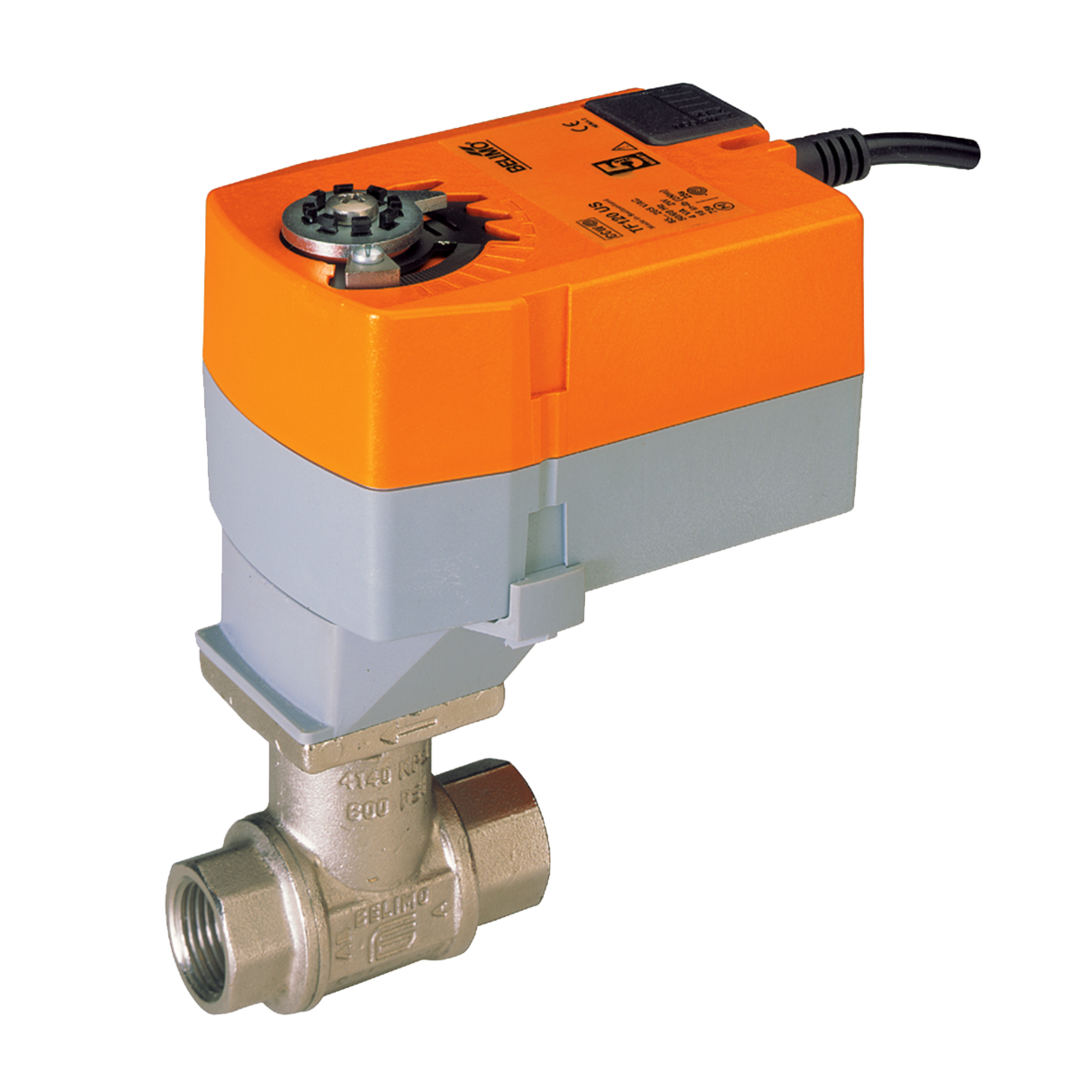

Belimo B214B+TFRB24-3 CCV Assembly 2 Way 1/2 in. NPT 7.4 Cv

Product Description

The Belimo B214B+TFRB24-3 is a characterized control valve designed for efficient control in HVAC systems. It has a nickel-plated brass body, chrome-plated brass ball, and nickel-plated brass stem, ensuring durability. This valve features a direct-coupled actuator with a spring return mechanism, operating on 24 VAC/DC with on/off functionality and floating point control.

• Designed for chilled or hot water systems
• 2-way operation with a Cv of 7.4
• Spring return actuator for reliable performance

Product Highlights

This valve is ideal for applications that require precise flow control in heating and cooling systems. It offers a compact design for easy installation and maintenance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B214B+TFRB24-3

Technical Specifications

• Valve Type: Characterized control valve
• Fluid Type: Chilled or hot water up to 60% glycol
• Valve Size: 0.5 inches
• Control Type: Floating/3-point
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Voltage: AC/DC 24 V
• Degree of Protection: IP42 NEMA 2 UL Enclosure Type 2
