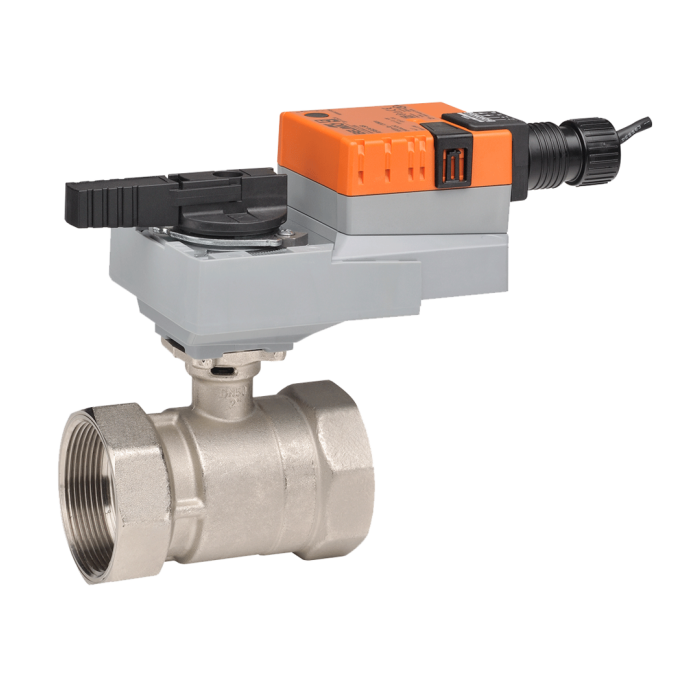

Belimo B214B+LRB24-SR-T CCV Assembly 2 Way, 1/2 in. NPT, 7.4 Cv

Product Description

The Belimo B214B+LRB24-SR-T is a characterized control valve that offers precise flow management. This valve features a nickel-plated brass body and chrome-plated components for durability. It operates with a direct coupled actuator that allows for non-fail safe operation. Ideal for modulating systems, it accepts a control signal of two to ten VDC or four to twenty mA.

• Flow Capacity: 7.4 Cv
• Voltage: 24 VAC/DC
• Valve Size: 1/2 inch NPT

Product Highlights

This control valve is essential for HVAC applications needing reliable flow control of chilled or hot water. With its robust construction and efficient operation, it is suitable for various systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B214B+LRB24-SR-T

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 to 0
• Cv: 7.4
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water with up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Valve Size: 1/2 inch (15 mm)
• Actuator Type: Non fail-safe
• Control Type: DC 2 to 10 V
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Terminals
• Manual Override: External push button
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 90 seconds for 90 degrees
• Voltage: AC/DC 24 V
