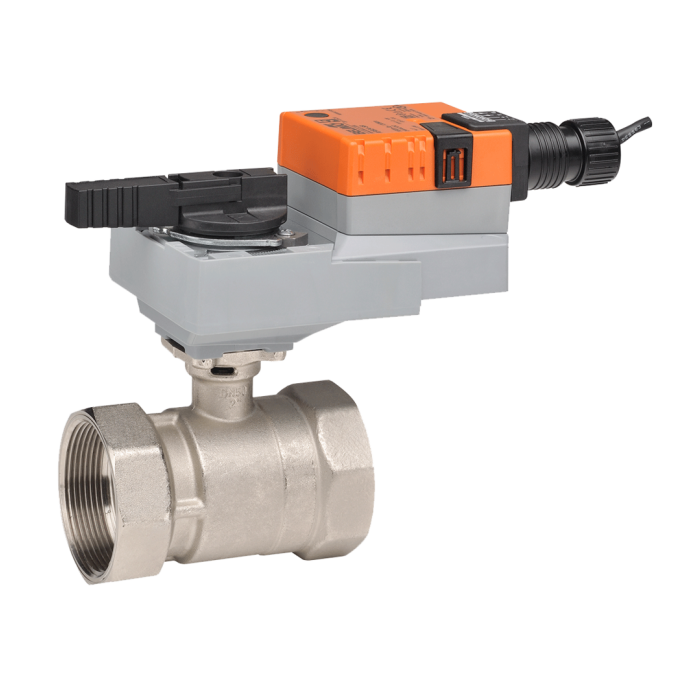

Belimo B214B+LRB24-SR CCV Assembly 2 Way 1/2 in NPT 7.4 Cv

Product Description

The Belimo B214B+LRB24-SR is a characterized control valve designed for HVAC applications. This valve is ideal for air handling units and fan coil units in heating or cooling systems. This model features a non-spring return actuator, making it efficient in various hydronic systems.

• Designed for 2-way flow control
• Compatible with 24 VAC and control signals of 2 to 10 VDC or 4 to 20 mA
• Rated for use in chilled and hot water

Product Highlights

This valve is suitable for use in air handling units and cooling coils. It supports variable flow hydronic systems for optimized energy use and comfort.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B214B+LRB24-SR

Technical Specifications

• Valve Size: 0.5 inches
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F To 122 F
• Electrical Connection: 3 ft. 18 GA appliance cable
• Power Consumption: 1.5 W Running, 0.4 W Holding
• Degree of Protection: NEMA 2, IP54
• Fluid Capability: Chilled or hot water with up to 60% glycol
