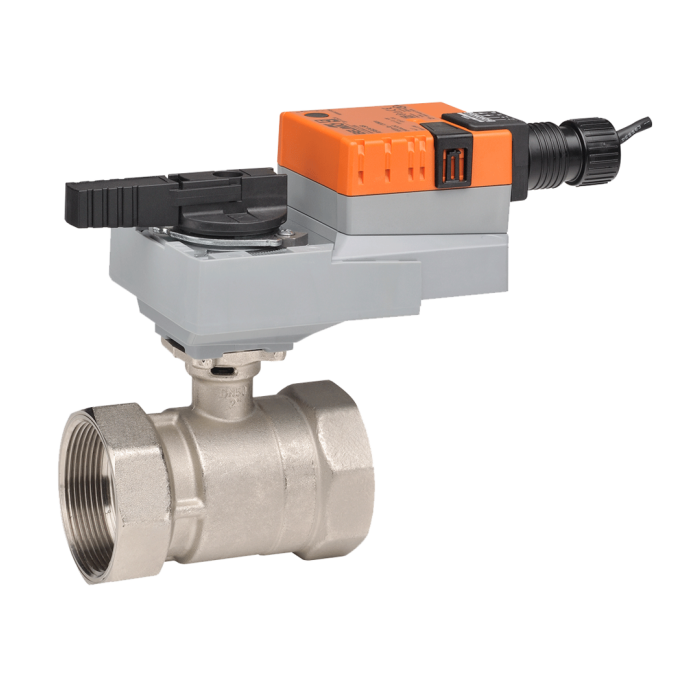

Belimo B214B+LRB24-3-T CCV Assembly 2 Way 1/2 in. NPT 7.4 Cv

Product Description

The Belimo B214B+LRB24-3-T is a characterized control valve specifically designed for HVAC applications. This product features a nickel-plated brass body and an actuator that operates on 24 VAC/DC. It is suitable for both on/off and floating point control.

• Type: 2-way control valve
• Flow Capacity: 7.4 Cv
• Voltage: 24 VAC/DC

Product Highlights

The valve effectively controls chilled or hot water flows, making it essential for various temperature control systems. Its durable construction ensures reliability in demanding environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B214B+LRB24-3-T

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 7.4
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Valve Size: 0.5 inches [15 mm]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA 1
• Electrical Connection: Terminals
• Manual Override: External push button
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Voltage: AC/DC 24 V
