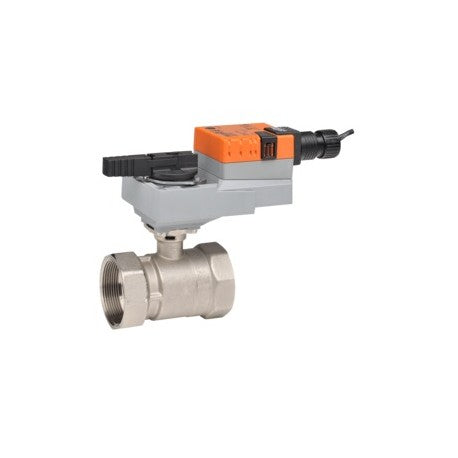

Belimo B214B+LRB24-3-S CCV Assembly 2 Way 1/2 in. NPT 7.4 Cv

Product Description

The Belimo B214B+LRB24-3-S is a characterized control valve designed for HVAC applications. This valve features a nickel-plated brass body, chrome-plated brass ball, and nickel-plated brass stem. It operates with a direct-coupled actuator and is suitable for 24 VAC/DC. The valve provides on/off and floating point control for efficient operation.

• Controlled flow for chilled or hot water systems
• Compact design, suitable for tight spaces
• Non fail-safe actuator for precise control

Product Highlights

This product is ideal for applications where precise control of fluid flow is essential. Its reliable construction ensures longevity in demanding environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B214B+LRB24-3-S

Technical Specifications

• Cv: 7.4
• Valve Size: 0.5 inches
• Voltage AC/DC: 24 V
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Electrical Connection: Cable
• Degree of Protection: IP54 NEMA 2
