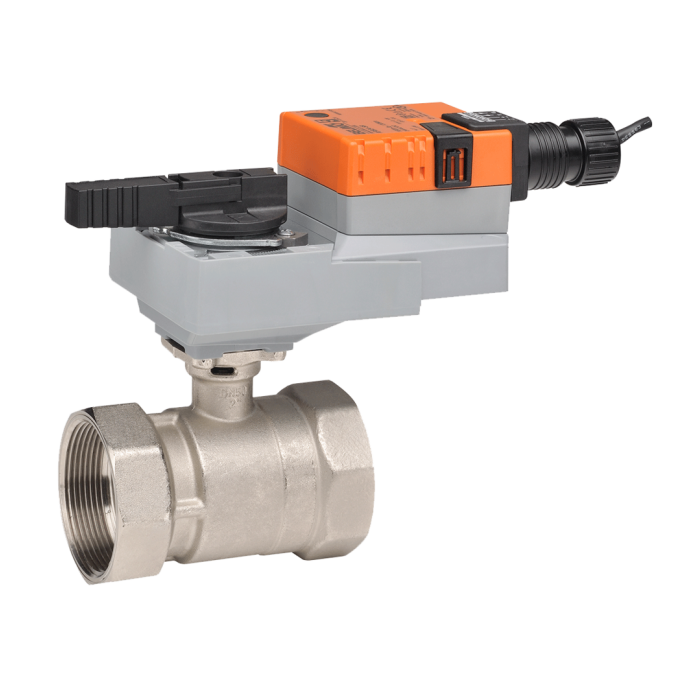

Belimo B214B+LRB120-3 CCV Assembly 2 Way 1/2 In. NPT 7.4 Cv

Product Description

The Belimo B214B+LRB120-3 is a characterized control valve designed for versatile applications. This valve has a nickel-plated brass body and features a chrome-plated brass ball and stem for enhanced durability. The valve operates with a direct-coupled actuator and supports on/off or floating point control, making it suitable for a variety of HVAC systems.

• Compact design with a 1/2 inch NPT connection
• 7.4 Cv flow coefficient for effective fluid management
• Voltage range from 100 to 240 VAC for flexible integration

Product Highlights

This control valve manages chilled or hot water up to sixty percent glycol, providing excellent control in various environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B214B+LRB120-3

Technical Specifications

• Valve Size: 0.5 inches [15]
• Flow Coefficient (Cv): 7.4
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Electrical Connection: Cable
• Voltage: AC 100...240V
