Belimo B214B+LF24-SR-S | CCV | 0.5 | 2 Way | 7.4 Cv | w/ Spg Rtn | 24V | 2-10V | SW | Belimo

Product Description

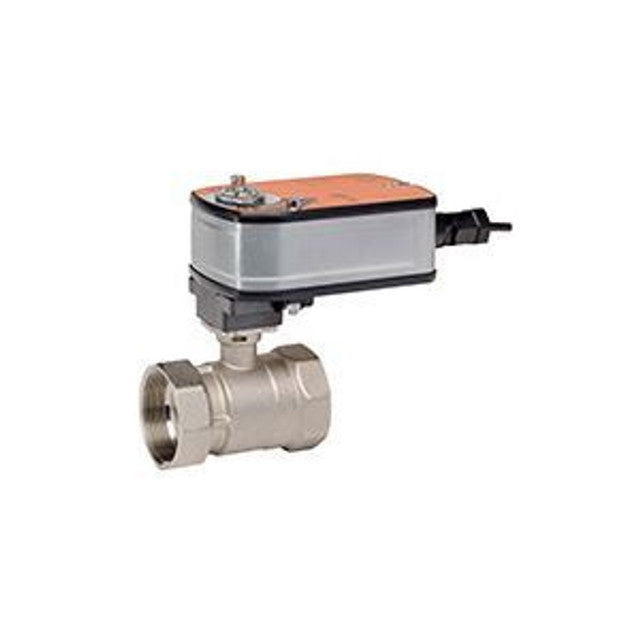

The Belimo B214B+LF24-SR-S is a control valve designed for efficient flow control in HVAC systems. This model features a half-inch valve with a Cv of 7.4, suitable for both chilled and hot water applications. It operates with spring return actuator technology and functions effectively at 24 volts.

• Two-way valve design for versatile applications
• Compatible with chilled or hot water up to sixty percent glycol
• Spring return actuator for reliable operation

Product Highlights

Ideal for heating and cooling systems, it maintains optimal temperature control and contributes to better energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: B214B+LF24-SR-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 7.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: Two-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches (15 millimeters)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds per 90 degrees
• Voltage AC/DC: AC/DC 24 V
