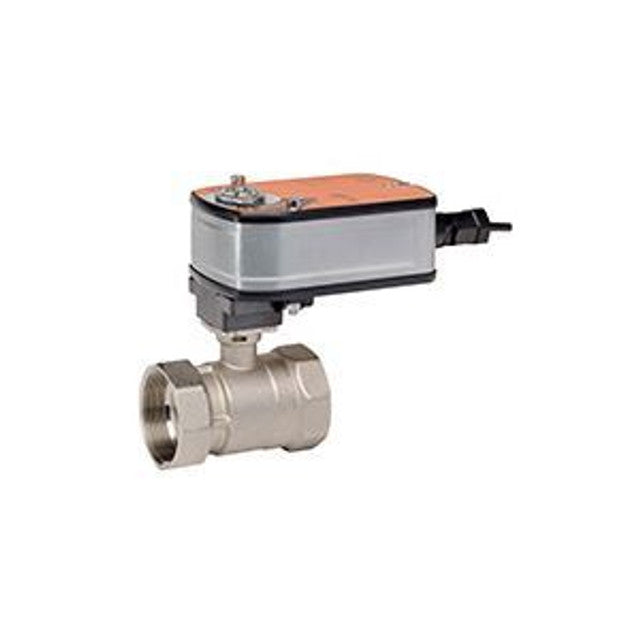

Belimo B214B+LF24-SR | CCV | 0.5 | 2 Way | 7.4 Cv | w/ Spg Rtn | 24V | 2-10V

Product Description

The Belimo B214B+LF24-SR is a control valve designed for heating and cooling systems. This valve is commonly used in air handling units for managing airflow in heating or cooling coils, as well as in fan coil units. It also serves in applications like unit ventilators, VAV box reheat coils, and bypass loops. This valve operates effectively in hydronic systems with variable flow.

• Applications include heating and cooling coils in multiple HVAC systems.
• Suitable for chilled or hot water systems with up to sixty percent glycol.
• Features a two-way valve pattern for efficient flow control.

Product Highlights

The Belimo B214B+LF24-SR valve includes a spring return actuator, ensuring reliable operation in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B214B+LF24-SR

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75%
• Cv: 7.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds per 90 degrees
• Voltage: AC/DC 24 V
