Belimo B214B CCV 2 Way 1/2 in NPT 7.4 Cv

Product Description

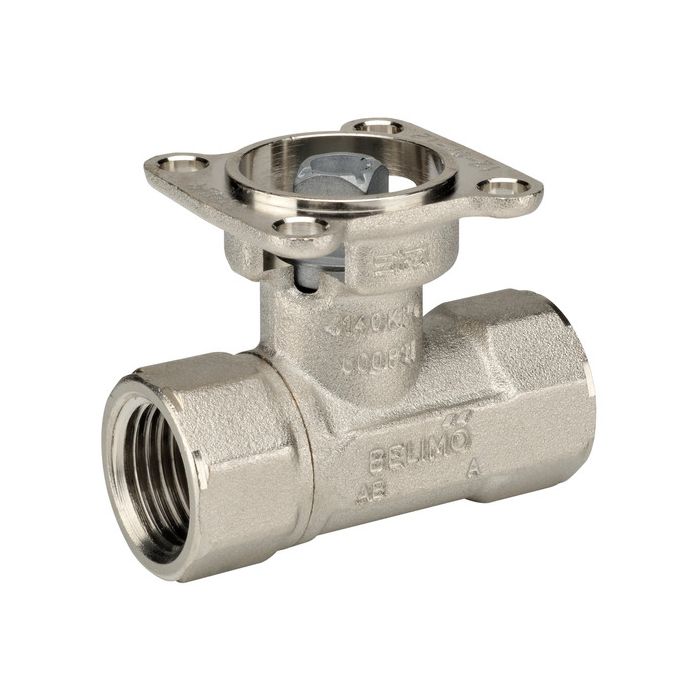

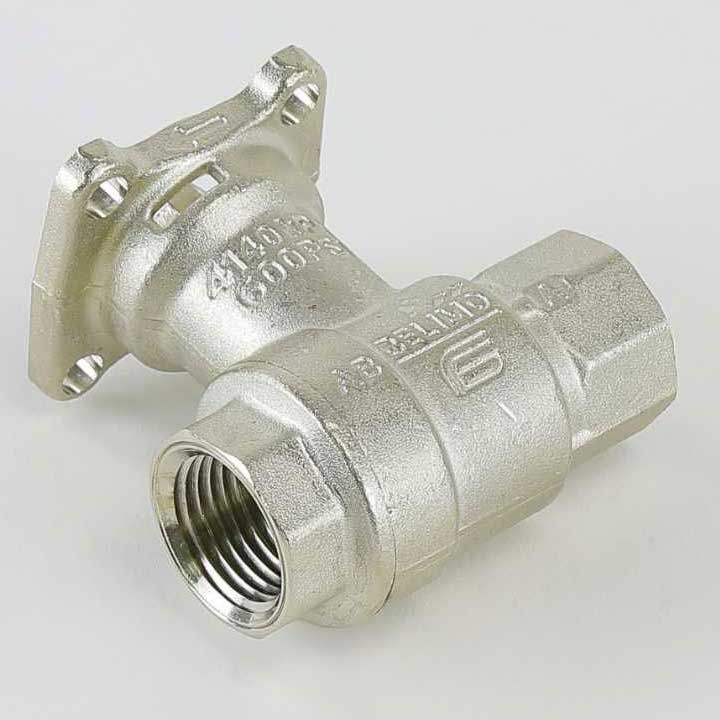

The Belimo B214B is a 2-way characterized control valve designed for efficient fluid control. It features a half-inch NPT connection and has a flow capacity of 7.4 Cv. This valve is suitable for air handling units and is commonly used in various hydronic systems.

• Designed for air handling units and fan coil unit heating or cooling coils.
• Suitable for chilled or hot water up to 60% glycol solutions.
• Offers a unique characteristic for better control and energy efficiency.

Product Highlights

The Belimo B214B provides stable control with a consistent flow. It features a nickel plated brass body and chrome plated brass ball for durability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B214B

Technical Specifications

• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Service: Chilled, Hot Water, up to 60% Glycol
• Body Material: Forged Brass
• Stem Material: Nickel Plated Brass
• End Fitting: Internal thread
• Valve Size: 0.5 inches
