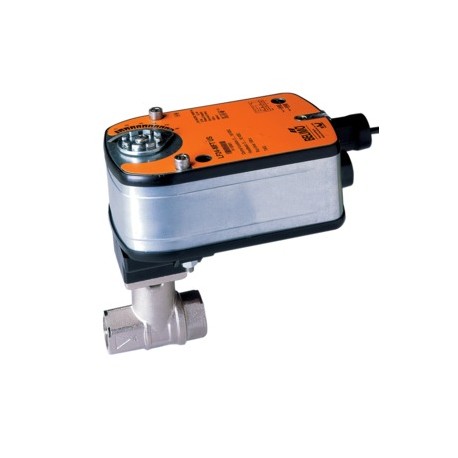

Belimo B214+LF24-MFT-S | CCV | 0.5 | 2 Way | 7.4 Cv | w/ Spg Rtn | 24V | MFT | SW

Product Description

The Belimo B214+LF24-MFT-S is a 2-way control valve designed for reliable operation in diverse HVAC applications. This valve features a flow coefficient (Cv) of 7.4, making it suitable for controlling water flow efficiently. It operates with a spring return actuator at a voltage of twenty-four volts.

• 2-way valve with a Cv of 7.4
• Spring return actuator
• Compatible with chilled or hot water

Product Highlights

This control valve is ideal for managing water flow in residential and commercial settings. The stainless steel trim ensures durability and resistance to corrosion. Its internal thread end fitting allows for easy installation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B214+LF24-MFT-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 7.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches (15 mm)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
