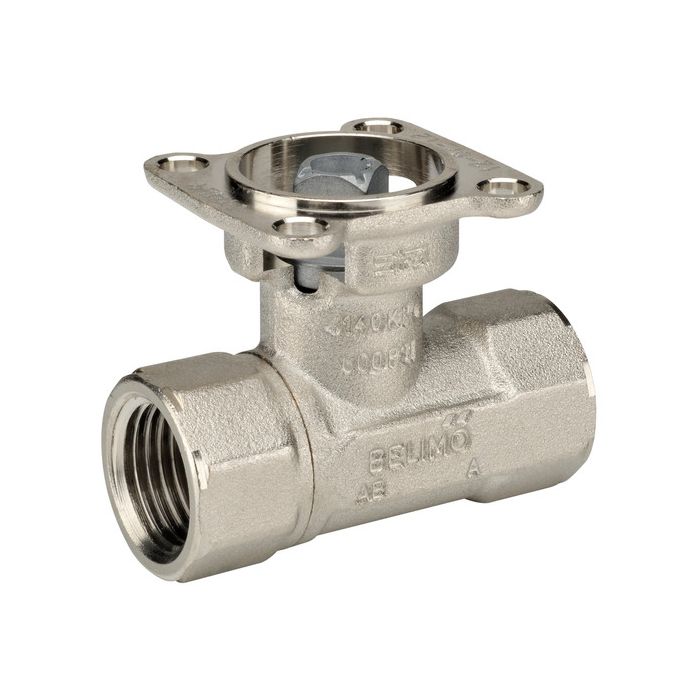

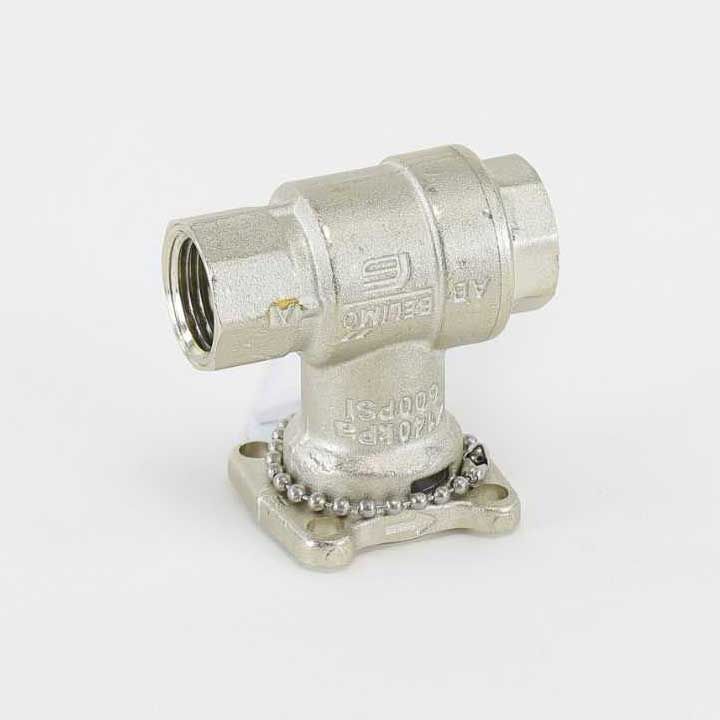

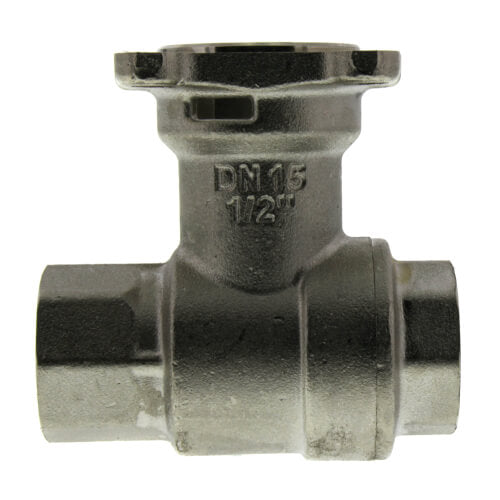

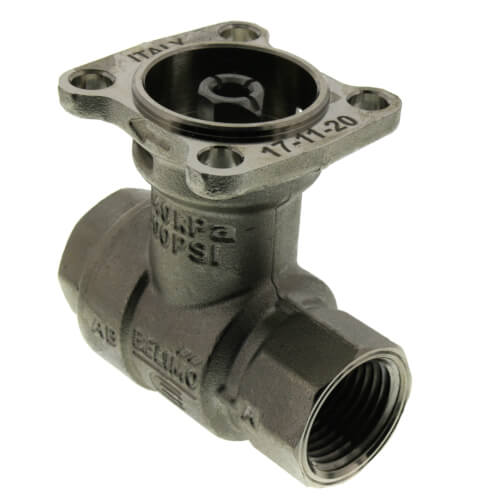

Belimo B214 CCV 2 Way 1/2 in NPT 7.4 Cv

Product Description

The Belimo B214 is a characterized control valve designed for HVAC applications. This two-way valve with a size of one half inch NPT provides a flow coefficient (Cv) of 7.4. It is used mainly in air handling units on heating or cooling coils, fan coil units, and variable flow hydronic systems.

• Made from forged brass and nickel plated for durability.
• Self-cleaning design with zero leakage.
• Rated for water temperatures up to 250 degrees Fahrenheit.

Product Highlights

The valve features a stainless steel ball and stem, ensuring maintenance-free operation and longevity.

Product Information

Standard Information

• Brand: Belimo
• MPN: B214

Technical Specifications

• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Fluid Compatibility: Chilled, hot water, up to 60% glycol
• Valve Size: 0.5 inches
• Trim Material: Stainless steel
• End Fitting: Internal thread
• Pressure Independent: No
