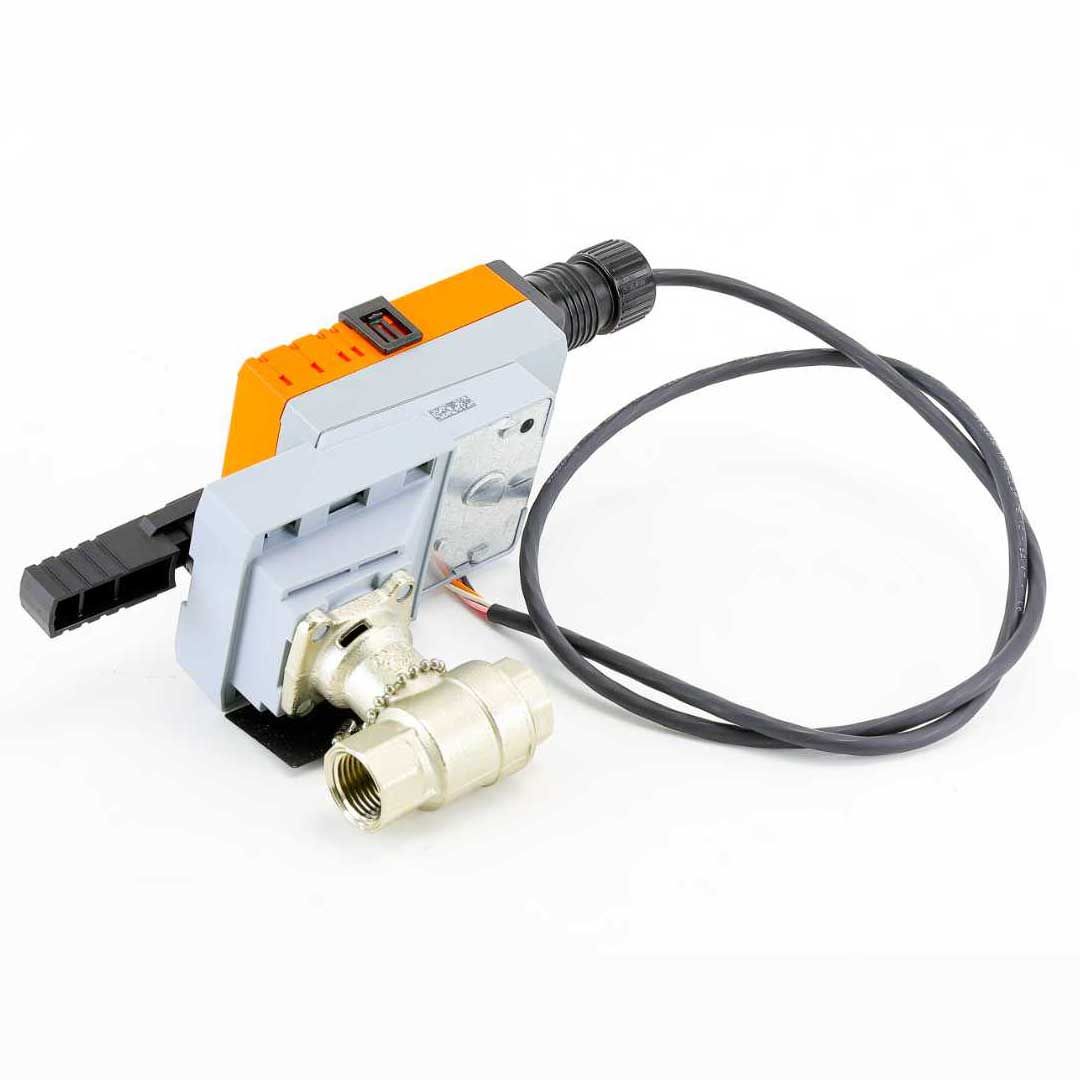

Belimo B213+LRX24-MFT Ball Valve Assembly 24V Replacement B213+LRX24-MFT

Product Description

Belimo presents the B213+LRX24-MFT, a high-quality ball valve assembly designed to facilitate precise fluid control in various systems. Featuring a stainless steel trim and a motorized 24 VDC actuator, this product is crafted to deliver reliable and efficient performance.

• Non-spring return actuator with a torque of 45 in-lb
• Appropriate for 4-20mA and PWM with resistance specifications of 500 ohm and 1500 ohm respectively
• Designed for both floating point and on/off control

Product Highlights

This product stands out for its durable design and precise control features.

Product Information

Standard Information

• Brand: Belimo
• MPN: B213+LRX24-MFT

Technical Specifications

• Valve Type: Characterized Control Valve
• Connection Type: 1/2 inch NPT internal threads
• Flow Coefficient (Cv): 4.7
• Actuator Type: Non fail-safe, motorized
• Control Type: MFT/Programmable
• Power Specifications: 24v, 24 VDC
• Protection Class: IP54 NEMA 2 UL Enclosure Type 2
• Manual Override: External push button
