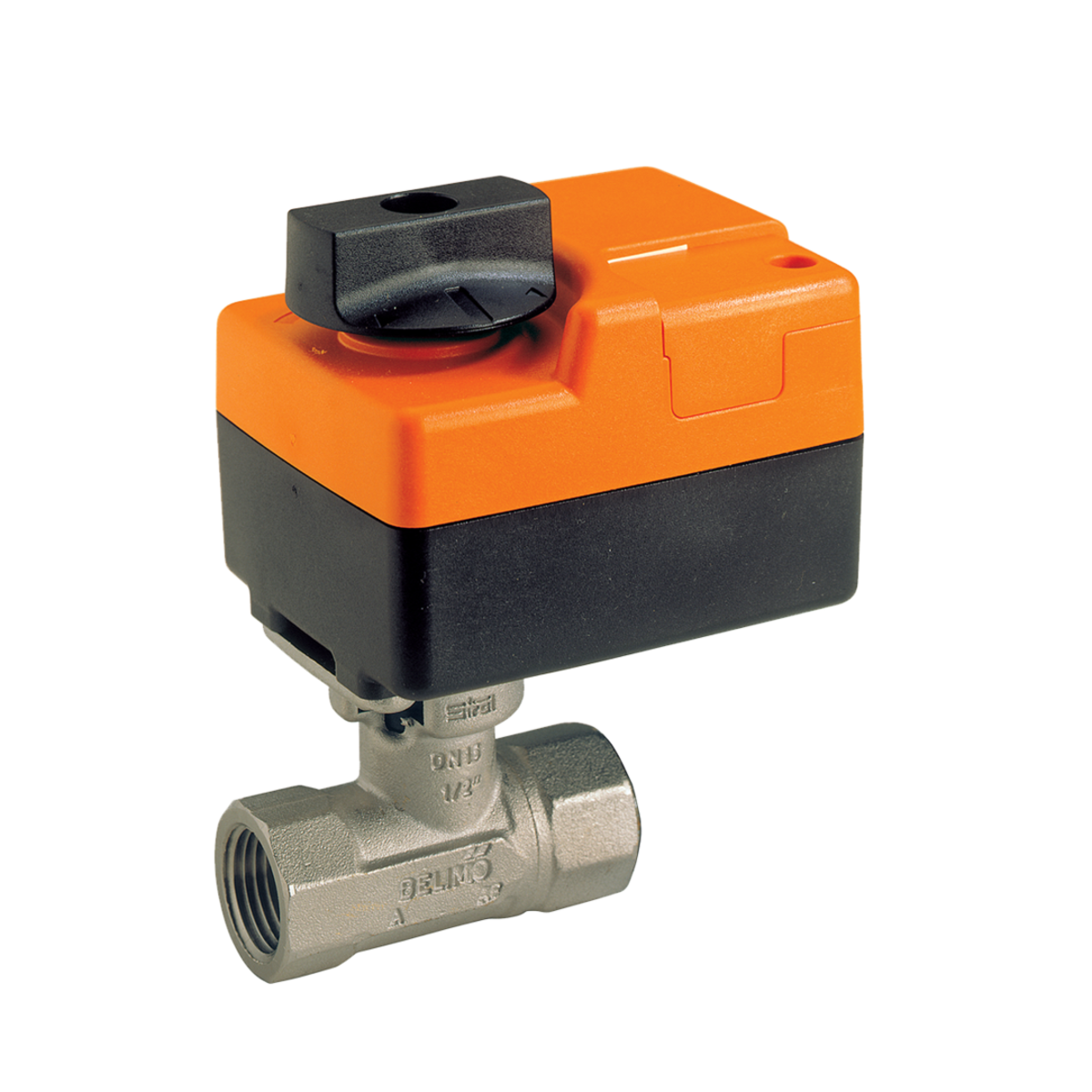

Belimo B213B+TR24-SR US ccv assembly 4.7 Cv

Product Description

The BELIMO B213B+TR24-SR US is a Characterized Control Valve (CCV) assembly with a forged brass, nickel-plated brass body and chrome-plated brass ball and nickel-plated brass stem. It features a modulating, non-spring return valve actuator, designed for 24 VAC and 2 to 10 VDC or 4 to 20 mA control signals.

• Typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils
• Suitable for use in hydronic systems with variable flow
• Ball valve design offers self-cleaning and zero leakage

Product Highlights

This CCV assembly is ideal for controlling chilled or hot water in HVAC systems, providing precise flow regulation and reliable performance.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B213B+TR24-SR US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5" [15]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Close-Off Rating: 100 PSI
• Body Pressure Rating: 600 psi
• Power Consumption For Wire Sizing: 1 VA
• Protection category: IP40
• Degree Of Protection NEMA: NEMA 1
• Enclosure Type: UL Enclosure Type 1
• Nema Rating: Nema 2
