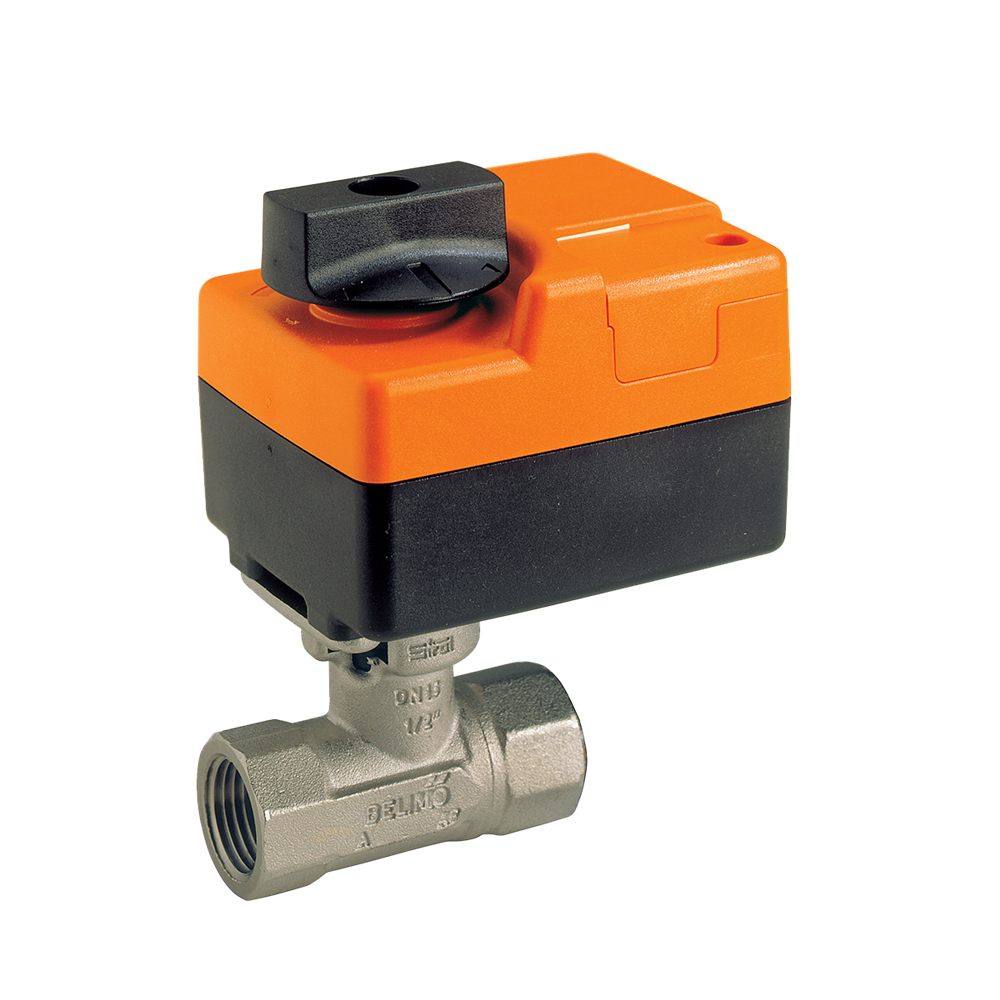

Belimo B213B+TR24-SR-T US ccv Assembly 2 Way, 1/2 in. Npt, 4.7 Cv

Product Description

The BELIMO B213B+TR24-SR-T US is a characterized control valve with a forged brass, nickel-plated brass body and chrome-plated brass ball and stem. It features a modulating, non-spring return valve actuator, operating at 24 VAC and controlled by a 2 to 10 VDC or 4 to 20 mA signal. Typically used in air handling units and fan coil units.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This valve is ideal for air handling units, fan coil units, and various HVAC applications, ensuring efficient heating or cooling coil regulation.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B213B+TR24-SR-T US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Screw Terminal
• Angle of Rotation: 90
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5 in
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR-T US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Body Pressure Rating: 600 psi
• CV Rating: 4.7
• Material: Chrome Plated Brass
• Control Signal: 2-10VDC
• Enclosure: None
