Product Description

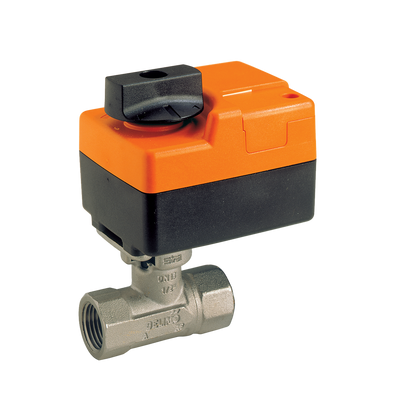

The Belimo B213B+TR24-SR-T is a control valve designed for use in various heating and cooling systems. Common applications include air handling units, fan coil units, unit ventilators, and VAV box reheat coils. This valve is suitable for use in hydronic systems with variable flow.
- Valves typically used in air handling systems
- Suitable for heating or cooling coils
- Works effectively in hydronic systems
Product Highlights
This control valve features a non-fail-safe actuator and operates with a control type of DC 2 to 10 volts.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B213B+TR24-SR-T
Technical Specifications
-
Angle of Rotation: 90 degrees
-
Controllable Flow Range: 75 B0
-
Cv: 4.7
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Chrome plated brass
-
Valve Size: 0.5 inches [15]
-
Actuator Type: Non fail-safe
-
Control Type: DC 2...10 V
-
Degree of Protection: IP40 NEMA 1
-
Electrical Connection: Terminals
-
Manual Override: Push down handle
-
Power Consumption (Running): 0.5 W
-
Running Time (Motor): 90 seconds / 90 degrees
-
Voltage AC/DC: AC/DC 24 V
