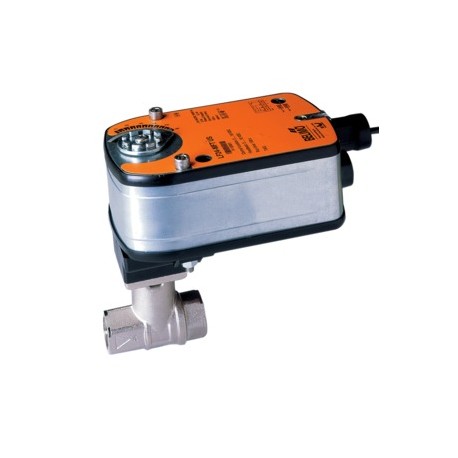

Belimo B213B+LF120-S CCV 0.5 2 Way 4.7 Cv w/ Spg Rtn 120V On/Off SW

Product Description

The Belimo B213B+LF120-S is a two-way control valve designed for HVAC applications. This valve features a half-inch size and is suitable for chilled or hot water systems with up to sixty percent glycol. Its spring return actuator operates at AC one hundred twenty volts for on/off control.

• Two-way valve with a flow coefficient of 4.7
• Spring return actuator with a degree of protection rated at IP54 NEMA2
• Designed for internal threaded end fittings

Product Highlights

This valve is suitable for various heating and cooling applications, providing reliable flow control.

Product Information

Standard Information

• Application: HVAC systems
• Actuator Type: Spring return

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5 [15]
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 120 V
