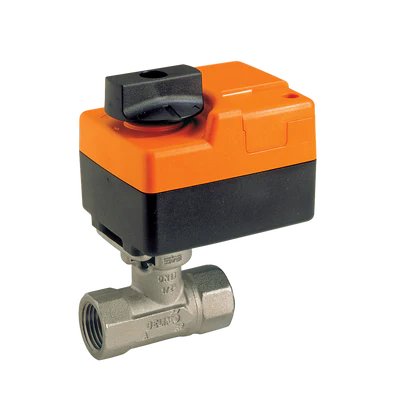

Belimo B213+TR24-3-T | CCV | 0.5 | 2 Way | 4.7 Cv | w/ Non-Spg | 24V | Floating

Product Description

The Belimo B213+TR24-3-T is a two-way valve designed for use in air handling units and fan coil units. This valve is suitable for heating or cooling coils and is compatible with hydronic systems that experience variable flow. Common applications include unit ventilators and VAV box re-heat coils.

• Engineered for optimal control of chilled or hot water.
• Features a stainless steel trim for enhanced durability.
• Operates on a 24V floating control signal.

Product Highlights

This valve assembly provides reliable operation in various HVAC applications, ensuring efficient fluid flow management.

Product Information

Standard Information

• Brand: Belimo
• MPN: B213+TR24-3-T

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 4.7
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pattern: 2-way
• Angle of Rotation: 90 degrees
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage AC/DC: AC 24V
• Manual Override: Push down handle
