Product Description

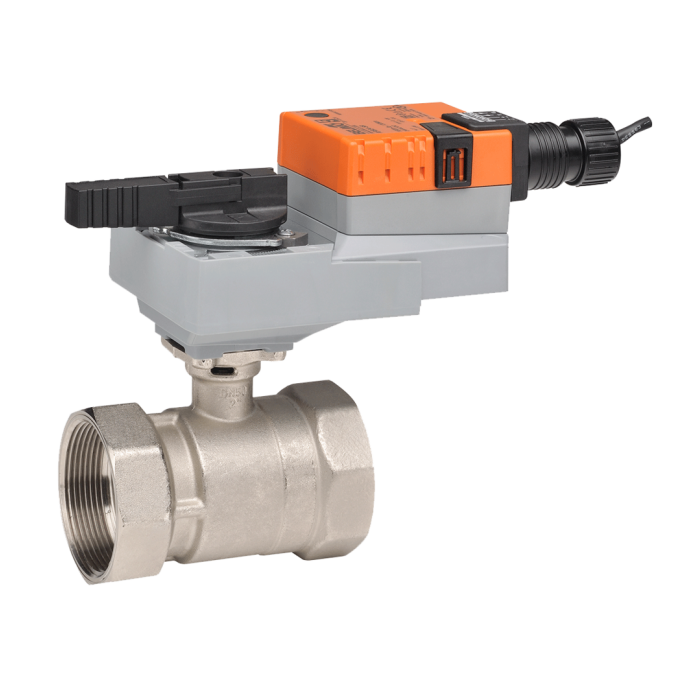

The Belimo B213+LRB120-3 is a characterized control valve suitable for heating and cooling applications. Designed for two-way flow control, it has a nickel-plated brass body with a stainless steel ball and stem. This valve operates with direct coupled actuators in a voltage range from 100 to 240 VAC, supporting both on/off and floating point control.
- Nickel-plated brass construction
- Compatible with chilled or hot water
- Electrical connection via cable
Product Highlights
This valve's compact design allows for easy installation and operation in various HVAC systems.
Product Information
Standard Information
-
Brand: Belimo
-
Part Number: B213+LRB120-3
-
Actuator Type: Non fail-safe
-
Control Type: Floating/3-point
-
Voltage AC/DC: AC 100 to 240 V
Technical Specifications
-
Cv: 4.7
-
Valve Size: 0.5 inches (15 mm)
-
Angle of Rotation: 90 degrees
-
Fluid Compatibility: Chilled or hot water up to 60% glycol
-
Electrical Connection: Cable
-
Power Consumption (Running): 2 W
-
Power Consumption (Holding): 0.5 W
-
Manual Override: External push button
