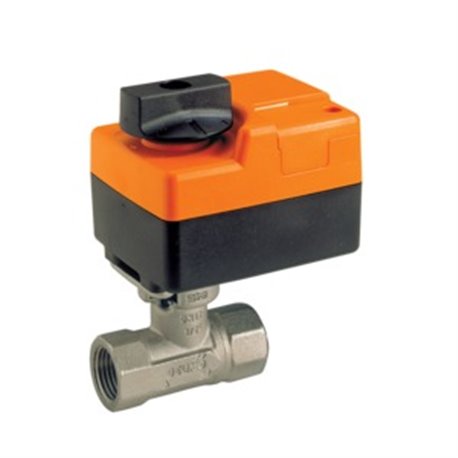

Belimo B212B+TR24-SR-T CCV 0.5 2 Way 3 Cv w/ Non-Spg 24V 2-10V

Product Description

The Belimo B212B+TR24-SR-T is a control valve designed for hydronic applications. This valve operates with a size of 0.5 inches and a flow coefficient of three (3 Cv). It is powered by twenty-four volts and utilizes a control signal of two to ten volts. This valve is ideal for various air handling units and is optimized for use in heating and cooling applications.

• Suitable for chilled or hot water systems.
• Designed for variable flow in hydronic systems.
• Compatible with unit ventilators and VAV boxes.

Product Highlights

This valve fits well in different heating or cooling coils and maintains efficient performance in fan coil units.

Product Information

Standard Information

• Valve Size: 0.5 inches
• Fluid Type: Chilled or hot water up to 60% glycol

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 B0
• Cv: 3
• End Fitting: Internal thread
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Electrical Connection: Terminals
• Manual Override: Push down handle
• Power Consumption: 0.5 W
• Running Time: 90 seconds / 90 degrees
• Voltage: AC/DC 24 V
