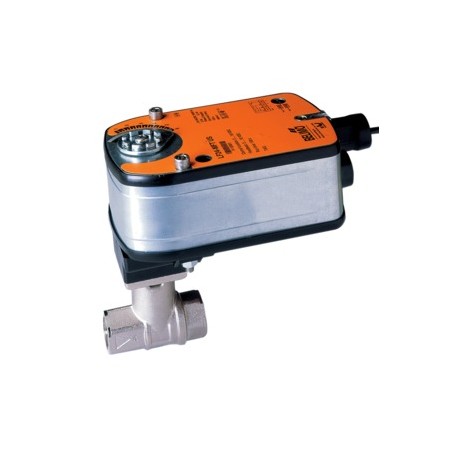

Belimo B212B+LF24-SR-S | CCV | 0.5 | 2 Way | 3 Cv | w/ Spg Rtn | 24V | 2-10V | SW

Product Description

The Belimo B212B+LF24-SR-S is a control valve designed for HVAC applications, ensuring optimal flow management. It operates at a voltage of twenty-four volts and features a spring return actuator. The valve supports 2-way operation with a size of half inch and a flow coefficient of three. The technology employed allows it to handle chilled or hot water with up to sixty percent glycol.

• 2-way valve with half inch size
• Spring return actuator with a voltage of twenty-four volts
• Compatible with chilled or hot water

Product Highlights

This valve is suitable for diverse HVAC systems, providing reliable performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B212B+LF24-SR-S

Technical Specifications

• Cv: 3
• Valve Size: 0.5 inches
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Electrical Connection: Cable
• Voltage AC/DC: AC/DC 24 V
