Belimo B212B+LF24-S CCV 0.5 2 Way 3 Cv Replacement MPN

Product Description

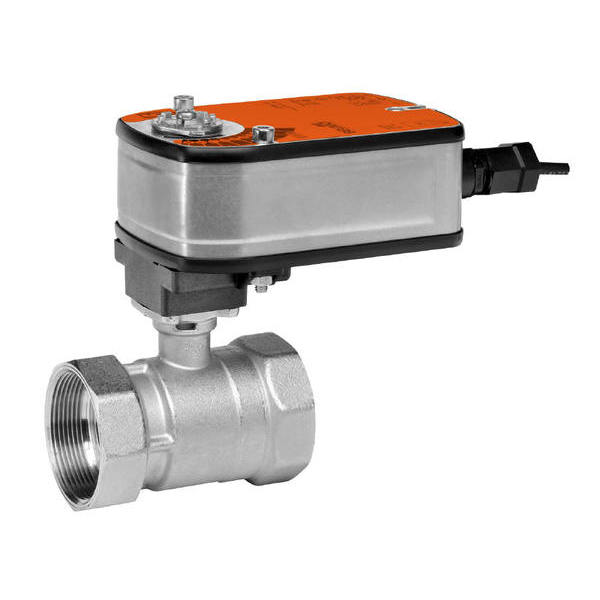

The Belimo B212B+LF24-S is a two-way valve with a size of half an inch and a Cv rating of three. This valve operates on 24 volts with a spring return actuator designed for on/off control. It is suitable for use with chilled or hot water systems up to 60% glycol. Its efficient design allows for precise flow control in HVAC applications.

• Actuator Type: Spring return for reliable operation
• Operating Voltage: AC/DC 24V for versatility
• Fluid Compatibility: Suitable for chilled or hot water

Product Highlights

The Belimo B212B+LF24-S features a chrome plated brass trim for durability. The valve is equipped with an auxiliary switch and operates within an angle of rotation of ninety degrees. This valve is ideal for HVAC professionals seeking reliable performance in regulating water flow.

Product Information

Standard Information

• Brand: Belimo
• MPN: B212B+LF24-S

Technical Specifications

• Cv: 3
• Valve Size: 0.5 inches
• Pattern: 2-way
• End Fitting: Internal thread
• Auxiliary Switches: 1 x SPDT
• Angle of Rotation: 90 degrees
• Voltage AC/DC: AC/DC 24V
• Fluid: Chilled or hot water up to 60% glycol
• Pressure Independent: No
