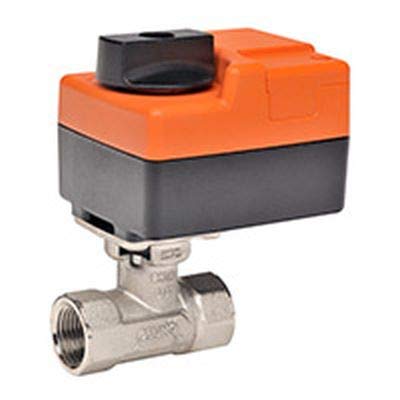

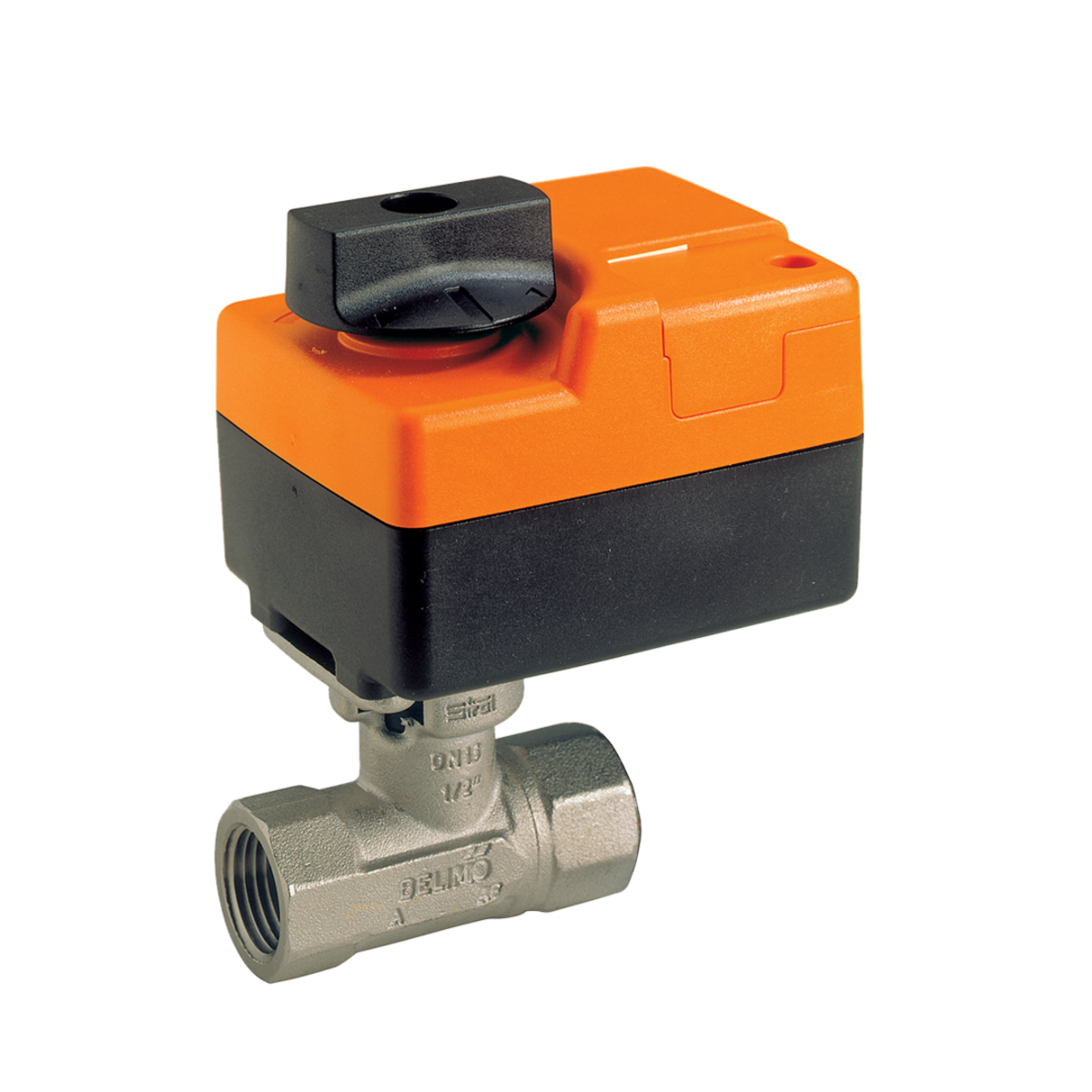

Belimo B212+TR24-SR US Ccv Assembly 2 Way 3 Cv

Product Description

The BELIMO B212+TR24-SR US is a characterized control valve assembly. It features a forged brass, nickel-plated brass body, and stainless steel ball and stem. This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.

• Valve is suitable in use in a hydronic system with variable flow
• Ball valve design offers self-cleaning and zero leakage
• Maintenance Free-No Repacking Required After Being In Service For An Extended Period Of Time

Product Highlights

This valve is designed for use in air handling units and hydronic systems with variable flow. Its ball valve design ensures self-cleaning and zero leakage.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B212+TR24-SR US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Cv: 3
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5" [15]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Close-Off Rating: 100 PSI
• Manufacturer: Belimo
• Manufacturer #: B212+TR24-SR US
