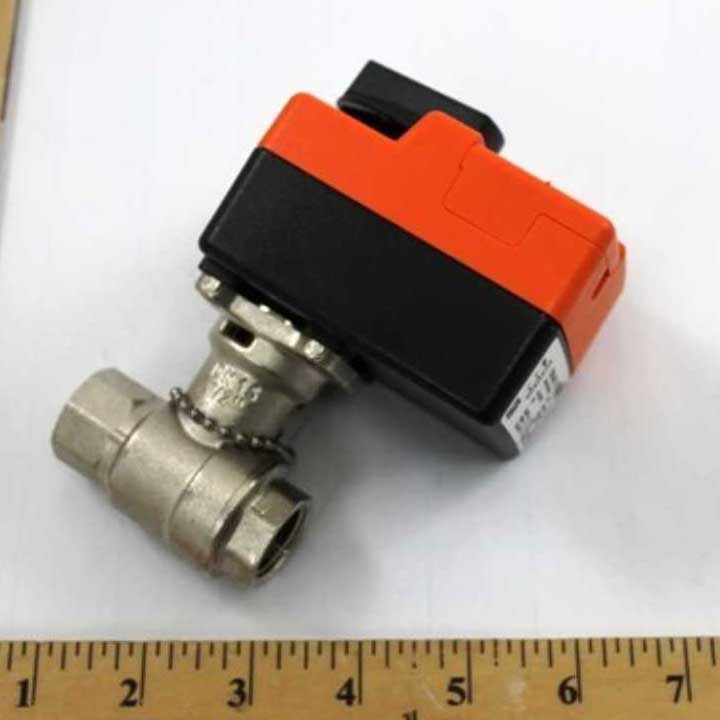

Belimo B212+TR24-SR-T | CCV | 0.5 | 2 Way | 3 Cv | w/ Non-Spg | 24V | 2-10V

Product Description

The Belimo B212+TR24-SR-T is a two-way characterized control valve designed for efficient fluid regulation. It operates with a voltage range of twenty-four volts and uses a two to ten volt direct current signal for control. This valve features a stainless steel trim for durability and performance in chilled or hot water systems with glycol mixtures up to sixty percent. It is equipped with a non-fail-safe actuator, ensuring reliable operation in various applications.

• Max flow coefficient of three Cv
• Compact valve size of half an inch
• Easy manual override with a push down handle

Product Highlights

This valve is suitable for HVAC systems requiring precise fluid control and can handle a controllable flow range of seventy-five degrees. It is designed for internal thread fittings and operates at a maximum angle of rotation of ninety degrees.

Product Information

Standard Information

• Brand: Belimo
• MPN: B212+TR24-SR-T

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 3
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Control Type: DC 2 to 10 V
• Power Consumption: 0.5 W
• Running Time (Motor): 90 seconds at 90 degrees
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
