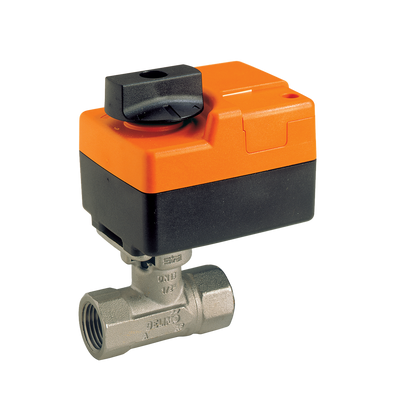

BELIMO B212+TR24-3-T CCV 0.5 Inch 2 Way 3 Cv Non-Spg 24V Floating

Product Description

The BELIMO B212+TR24-3-T is a 0.5 inch 2-way control valve designed for precise regulation of water flow in HVAC systems. Equipped with a non-spring, 24-volt floating actuator, this valve offers robust performance in managing chilled or hot water up to 60% glycol. Its stainless steel trim enhances durability and resistance against corrosion.

• Optimized for both chilled and hot water applications.
• Features a floating control type for enhanced flexibility in operation.
• Sturdy stainless steel trim ensures long-term reliability.

Product Highlights

This valve integrates seamlessly into existing systems, providing a controllable flow range that ensures efficient energy use and system performance.

Product Information

Standard Information

• Brand: BELIMO
• MPN: B212+TR24-3-T
• Valve Type: 2-way
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point

Technical Specifications

• Flow Coefficient (Cv): 3
• Connection Type: Internal thread
• Electrical Connection: terminals
• Manual Override Capability: Push down handle
• Voltage: AC 24V
• Protection Class: IP40 NEMA1
