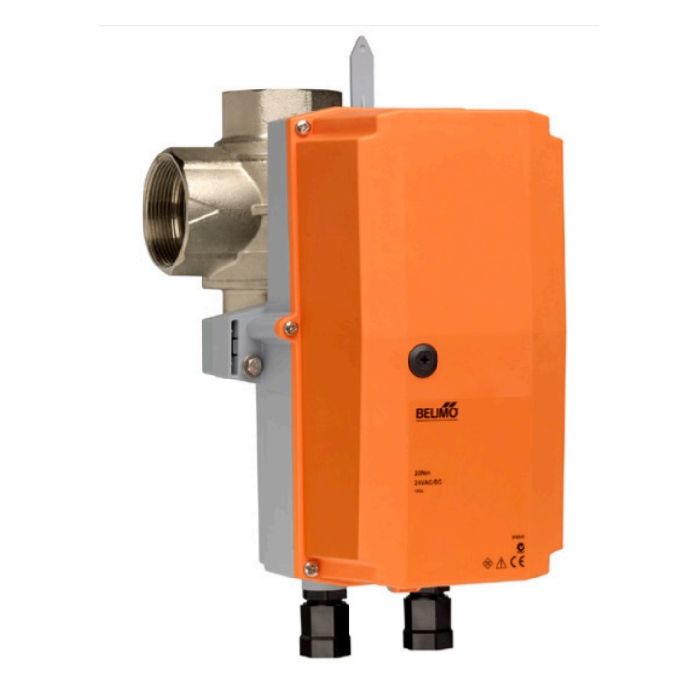

Belimo B212+NRX24-SR-T N4 CCV Assembly 2 Way 1/2 In NPT 3 Cv

Product Description

The Belimo B212+NRX24-SR-T N4 is a characterized control valve designed for heating and cooling systems. This particular model features a forged brass and nickel plated brass body, with a stainless steel ball and stem. It operates on a direct coupled actuator that provides modulating control requiring a 24 VAC supply. Ideal for HVAC applications, it supports a control signal range of 2 to 10 VDC or 4 to 20 mA.

• Suitable for air handling units and fan coil units.
• Can be used in hydronic systems.
• Offers a varied flow rate for effective temperature control.

Product Highlights

The B212+NRX24-SR-T N4 excels in applications where precise control is necessary, especially in variable flow systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B212+NRX24-SR-T N4

Technical Specifications

• Housing: IP66/67, NEMA 4X
• Service: Chilled, hot water up to 60% glycol
• Power Consumption: 3.5 W running, 0.6 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: Screw terminal, 1/2 in. conduit connector
