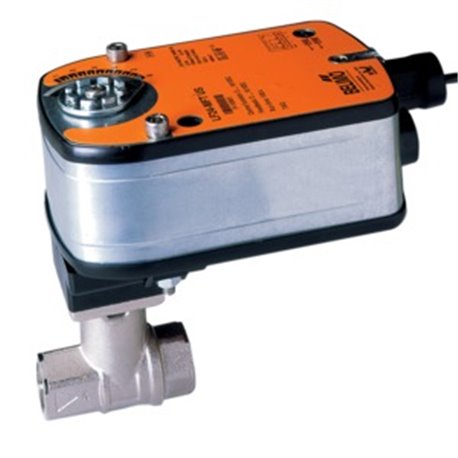

Belimo B211B+LF24 CCV 0.5 2 Way 1.9 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B211B+LF24 is a two-way control valve designed for efficient flow management in heating and cooling systems. It features a valve size of half inch and operates at a Cv rating of 1.9. The actuator is spring return and works with a voltage of twenty-four volts.

• Half inch size with two-way pattern
• Spring return actuator for reliable operation
• Suitable for chilled or hot water applications

Product Highlights

This valve is ideal for controlling water flow in HVAC systems. Its compact size and efficient design make it a key component for temperature regulation and energy management.

Product Information

Standard Information

• Brand: Belimo
• MPN: B211B+LF24

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 1.9
• Fluid: Chilled or hot water up to sixty percent glycol
• Pattern: Two-way
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Electrical Connection: Cable
• Voltage: AC/DC 24 V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Degree of Protection: IP54 NEMA 2
