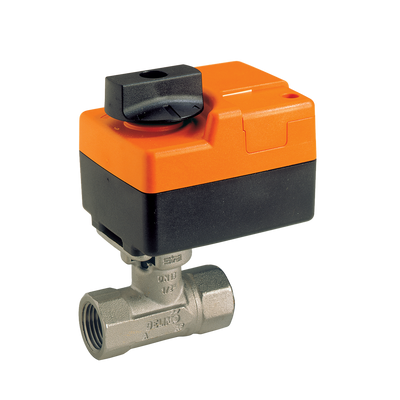

BELIMO B211+TR24-SR CCV 0.5 inch 2 Way 1.9 Cv Non-Spring 24V 2-10V

Product Description

The Belimo B211+TR24-SR is a 0.5 inch 2-way control valve designed for precise environmental control in HVAC systems. It is especially suited for applications in air handling units, heating or cooling coils, and fan coil unit heating or cooling coils. Ideal for use in hydronic systems with variable flow, this valve ensures efficient handling of chilled or hot water up to 60% glycol.

• Optimized for both heating and cooling applications.
• Featuring a non-spring return actuator for reliable performance.
• Equipped with a stainless steel trim to enhance durability and performance.

Product Highlights

This control valve offers easy integration into existing HVAC systems and is built to provide reliable service with minimal maintenance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B211+TR24-SR

Technical Specifications

• Valve Size: 0.5 inch
• Pattern: 2-way
• Control Type: DC 2-10 V
• Actuator Type: Non fail-safe
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• Manual Override: Push down handle
• Voltage: AC/DC 24V
