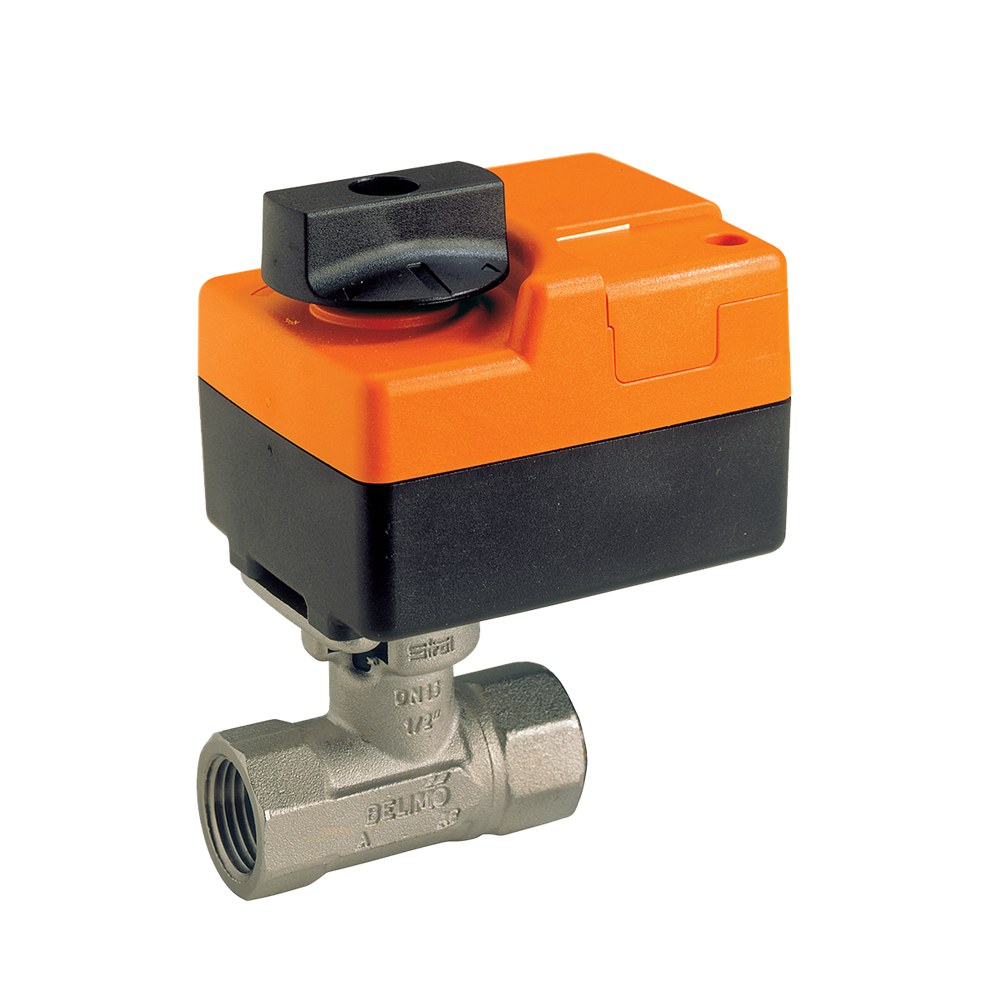

Belimo B211+TR24-3 US CCV Assembly 2 Way 0.5 in NPT 1.9 Cv

Product Description

The Belimo B211+TR24-3 US is a characterized control valve ideal for air handling units. This valve operates efficiently with heating or cooling coils. It is particularly effective in fan coil unit applications.

• Suitable for chilled and hot water applications, up to sixty percent glycol.
• Design allows for easy maintenance with no need for repacking after extended use.
• Rated for operating conditions as low as negative twenty-two degrees Fahrenheit to one hundred twenty-two degrees Fahrenheit.

Product Highlights

This valve is designed for hydronic systems with variable flow requirements and delivers high performance and reliable functionality.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B211+TR24-3 US

Technical Specifications

• Valve Size: 0.5 inches
• Flow Characteristic: Equal Percentage
• Power Consumption: 1 W Running
• Close-Off Pressure: 200 psi
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90 degrees
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Valve Type: 2-way
