BELIMO B211+TR24-3 CCV 0.5 Inch 2 Way 1.9 Cv w Non-Spg 24V Floating Replacement B211+TR24-3

Product Description

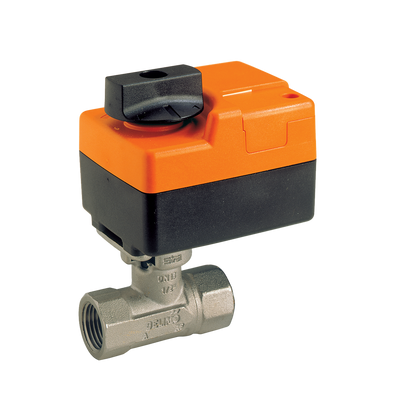

The Belimo B211+TR24-3 control valve features a 0.5 inch two-way pattern with a Cv of 1.9, designed for hydronic systems with variable flow. Typically utilized in air handling units for heating or cooling coils, this valve excels in diverse settings including fan coil units and VAV box re-heat coils.

• Optimal for both chilled and hot water applications up to 60% glycol.
• Durable stainless steel trim and non-fail-safe floating actuator.
• 90 degree angle of rotation with a floating 3-point control for precise adjustment.

Product Highlights

This Belimo valve offers a robust solution for managing flow in heating and cooling systems, ensuring reliable performance with its IP40 rated actuator.

Product Information

Standard Information

• Brand: Belimo
• MPN: B211+TR24-3

Technical Specifications

• Valve Size: 0.5 inches
• Flow Coefficient (Cv): 1.9
• Valve Pattern: 2-way
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage: AC 24V
• Protection Degree: IP40 NEMA1
