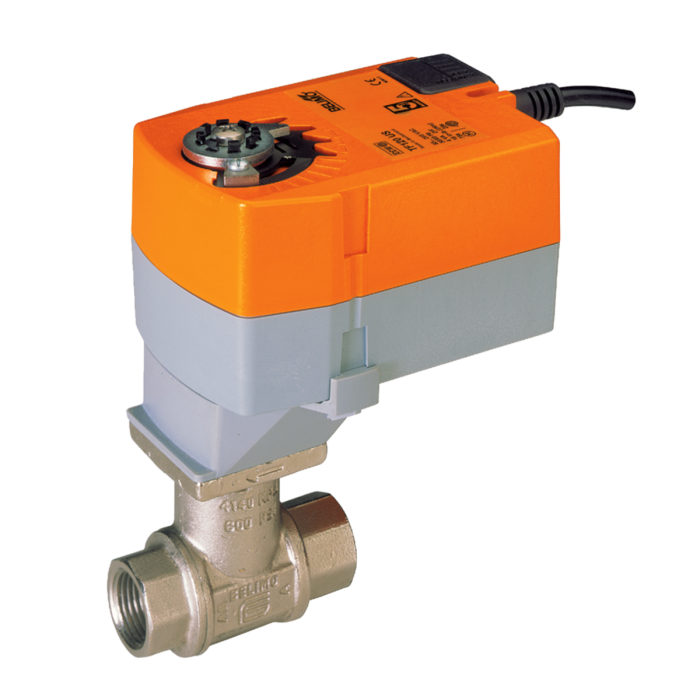

Belimo B211+TFRX24-MFT CCV Assembly 2 Way 1/2 in NPT 1.9 Cv

Product Description

The Belimo B211+TFRX24-MFT is a characteristically designed control valve. This model is suitable for various applications including air handling units and fan coil units, making it an excellent choice for heating or cooling coils.

• Valve is designed for air handling applications.
• Suitable for hydronic systems with variable flow.
• Maintenance-free with a self-cleaning ball valve design.

Product Highlights

Featuring a stainless steel ball and stem, this device operates on a spring return mechanism and uses multi-function technology. It modulates effectively with a power rating of twenty-four volts.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B211+TFRX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to sixty percent glycol
• Power Consumption: 2.5 W running, 1 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft, 10 ft or 16 ft, with 1/2 in. conduit connector
