Product Description

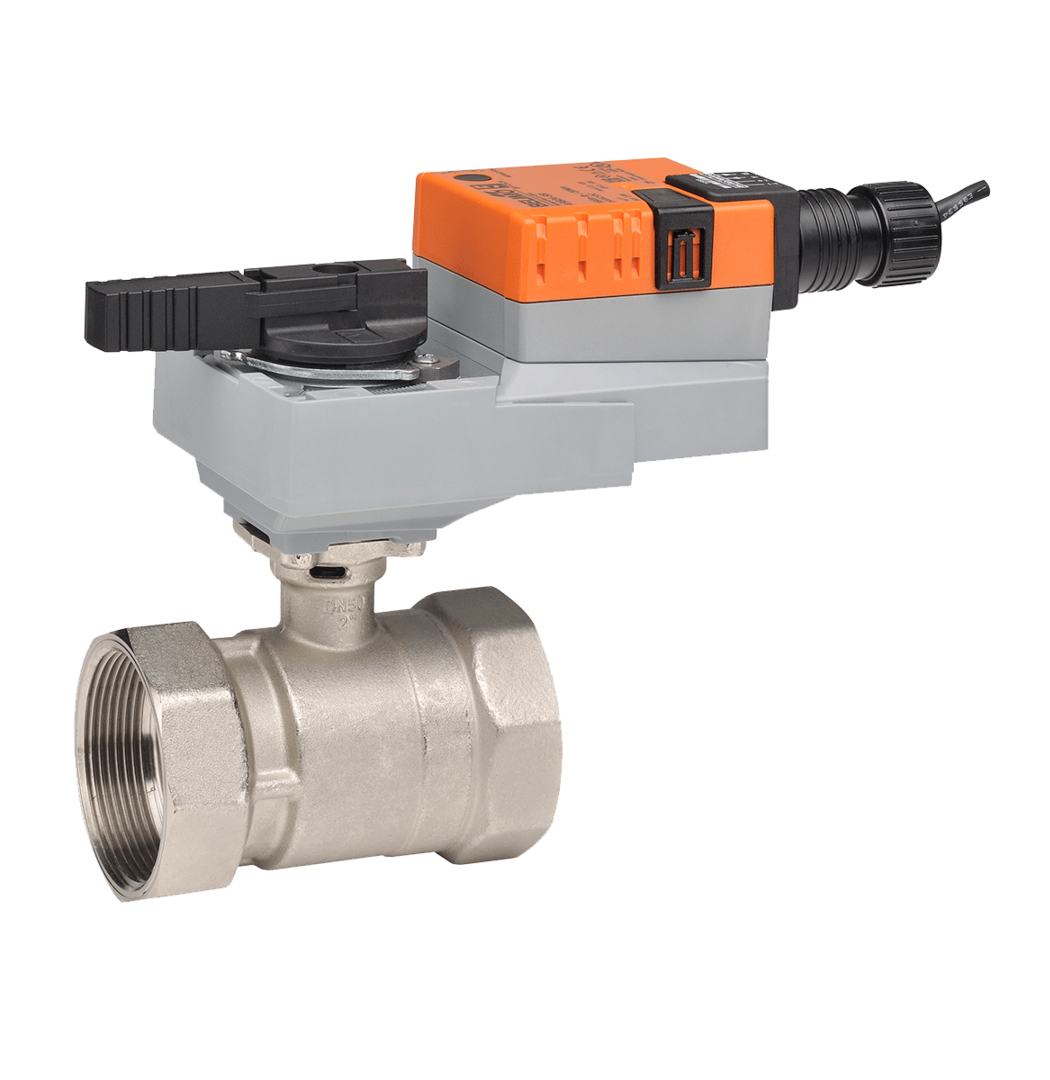

The Belimo B211+LRQX24-MFT is a characterized control valve designed for various HVAC applications. It includes a nickel-plated brass body and stainless steel ball and stem. This valve is suitable for use in heating or cooling coils within air handling units and fan coil units. Also, it can be applied in unit ventilators, VAV box re-heat coils, and bypass loops, making it versatile in hydronic systems with variable flow.
- Low power consumption with a holding rate of 1.5 W.
- Direct coupled actuator type and non-fail-safe functionality.
- Pressure independent design not included.
Product Highlights
Offers multi-function technology suitable for demanding HVAC tasks.
Product Information
Standard Information
-
Brand: Belimo
-
Part Number: B211+LRQX24-MFT
Technical Specifications
-
Valve Size: 0.5 inches
-
Cv: 1.9
-
Fluid: Chilled or hot water up to 60% glycol
-
Actuator Type: Non fail-safe
-
Voltage AC/DC: AC/DC 24 V
-
Electrical Connection: Cable
-
Running Time (Motor): 4 seconds per 90 degrees
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
