Belimo B211+LF120-S | CCV | 0.5 | 2 Way | 1.9 Cv | w/ Spg Rtn | 120V | On/Off | SW

Product Description

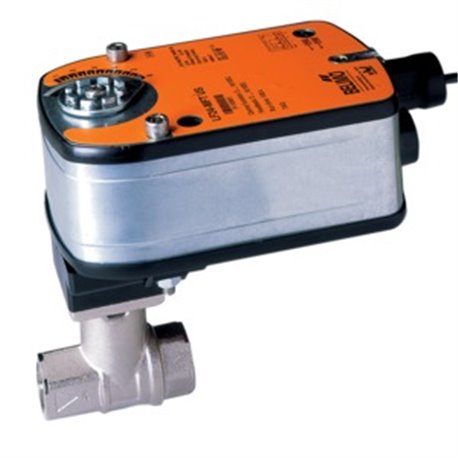

The Belimo B211+LF120-S is a two-way control valve designed for reliable water flow management. Its half-inch size and a Cv rating of 1.9 make it suitable for various HVAC systems. This valve is powered by a spring return actuator and operates at 120 volts. It is ideal for controlling chilled or hot water with up to sixty percent glycol.

• 0.5 inch valve size with internal threading
• Spring return actuator with a response time of less than twenty-five seconds
• Specialized for use in HVAC systems

Product Highlights

This valve provides enhanced operational control in heating and cooling systems, ensuring consistent performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B211+LF120-S

Technical Specifications

• Cv: 1.9
• Fluid: Chilled or hot water up to 60% glycol
• Voltage AC/DC: AC120V
• Degree of Protection: IP54 NEMA2
• Pattern: 2-way
• Valve Size: 0.5 inch (15 mm)
• Auxiliary Switches: 1 x SPDT
• Angle of Rotation: 90 degrees
