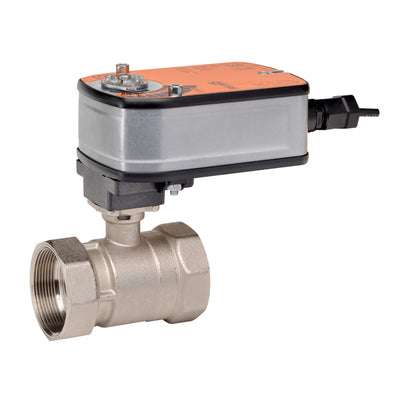

Belimo B210B+LF120 | CCV | 0.5 | 2 Way | 1.2 Cv | w/ Spg Rtn | 120V | On/Off

Product Description

The Belimo B210B+LF120 is a control valve designed for heating and cooling applications. It features a quarter-turn operation and is suitable for various systems using chilled or hot water. This valve has a capacity of one point two Cv and is powered by a one hundred twenty-volt AC electric supply. It ensures a reliable flow control in two-way configurations.

• Valve size of zero point five inches
• Internal threaded end fitting
• Designed for use in systems with fluids up to sixty percent glycol

Product Highlights

This valve operates as a spring return actuator, providing efficient operation and quick response time.

Product Information

Standard Information

• Brand: Belimo
• Model: B210B+LF120

Technical Specifications

• Cv: 1.2
• Valve Size: 0.5 inches (15)
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Electrical Connection: Cable
• Voltage AC/DC: AC 120 V
• Degree of Protection: IP54 NEMA2
