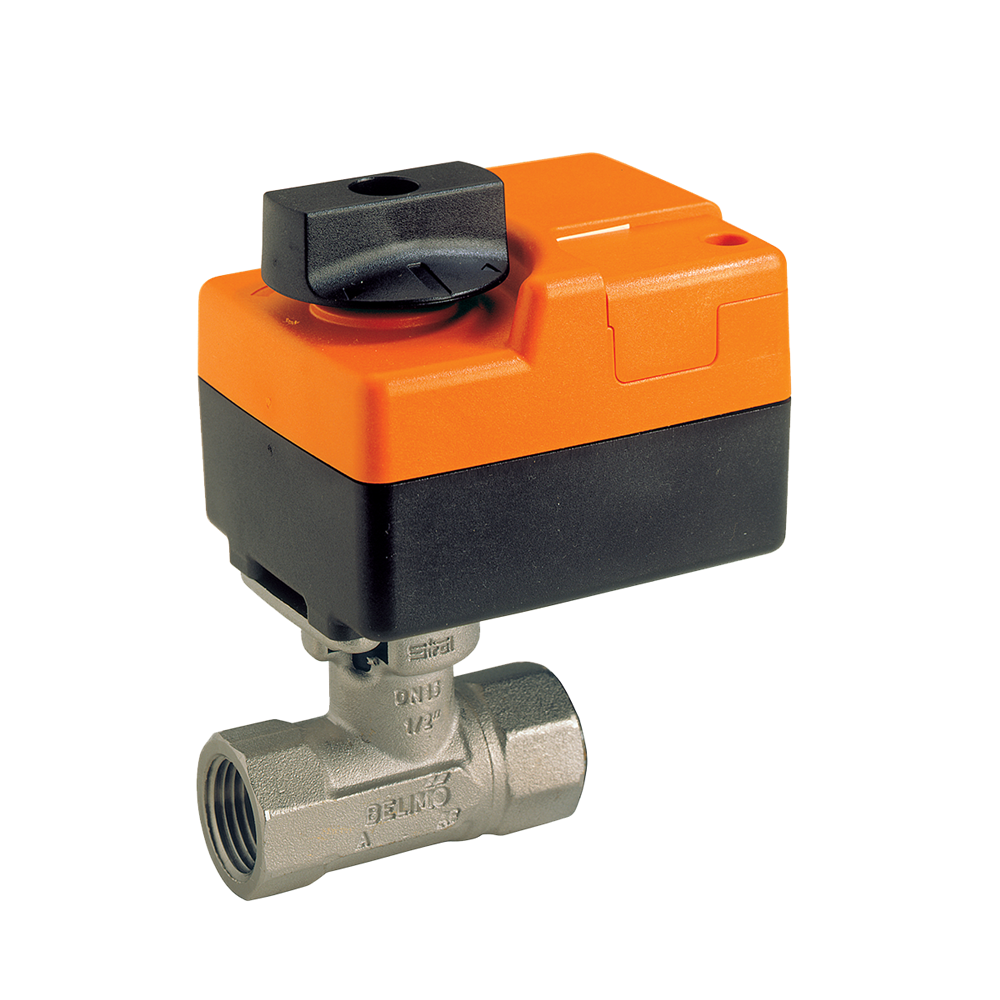

Belimo B210+TR24-3 US CCV Assembly 24 VAC 1/2 in. NPT

Product Description

The BELIMO B210+TR24-3 US is a 2-way Characterized Control Valve (CCV) designed for precise flow regulation in HVAC hydronic systems. Featuring a forged brass body with nickel-plated brass and stainless steel ball and stem, this valve operates with a non-spring return floating point actuator at 24 VAC. It is suitable for chilled or hot water applications, including up to 60% glycol, and maintains a close-off pressure of 200 psi. The valve has a 1/2 inch NPT connection and a 1.2 Cv flow coefficient.

• Typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.
• Suitable for use in a hydronic system with variable flow.
• Ball valve design offers self-cleaning and zero leakage.

Product Highlights

This BELIMO B210+TR24-3 US CCV provides accurate flow control for HVAC applications, featuring a durable brass and stainless steel construction, 24 VAC floating control, and NEMA Type 1/IP40 housing.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B210+TR24-3 US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 1 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Valve Type: CCV
• Valve Size: 1/2 in.
• Valve Pattern: 2 Way
• Cv: 1.2
• Actuator Type: Non-Spring Return
• Input Voltage: 24V
• Control Type: On/Off, Floating
• Angle of Rotation: 90
• Connection Type: NPT
• Pressure Independent: NO
• Trim: Nickel Plated Brass Body, Stainless Steel Ball and Stem
• Manual Override: Push down handle
• Running Time: 90 s / 90°
