Description

Product Description

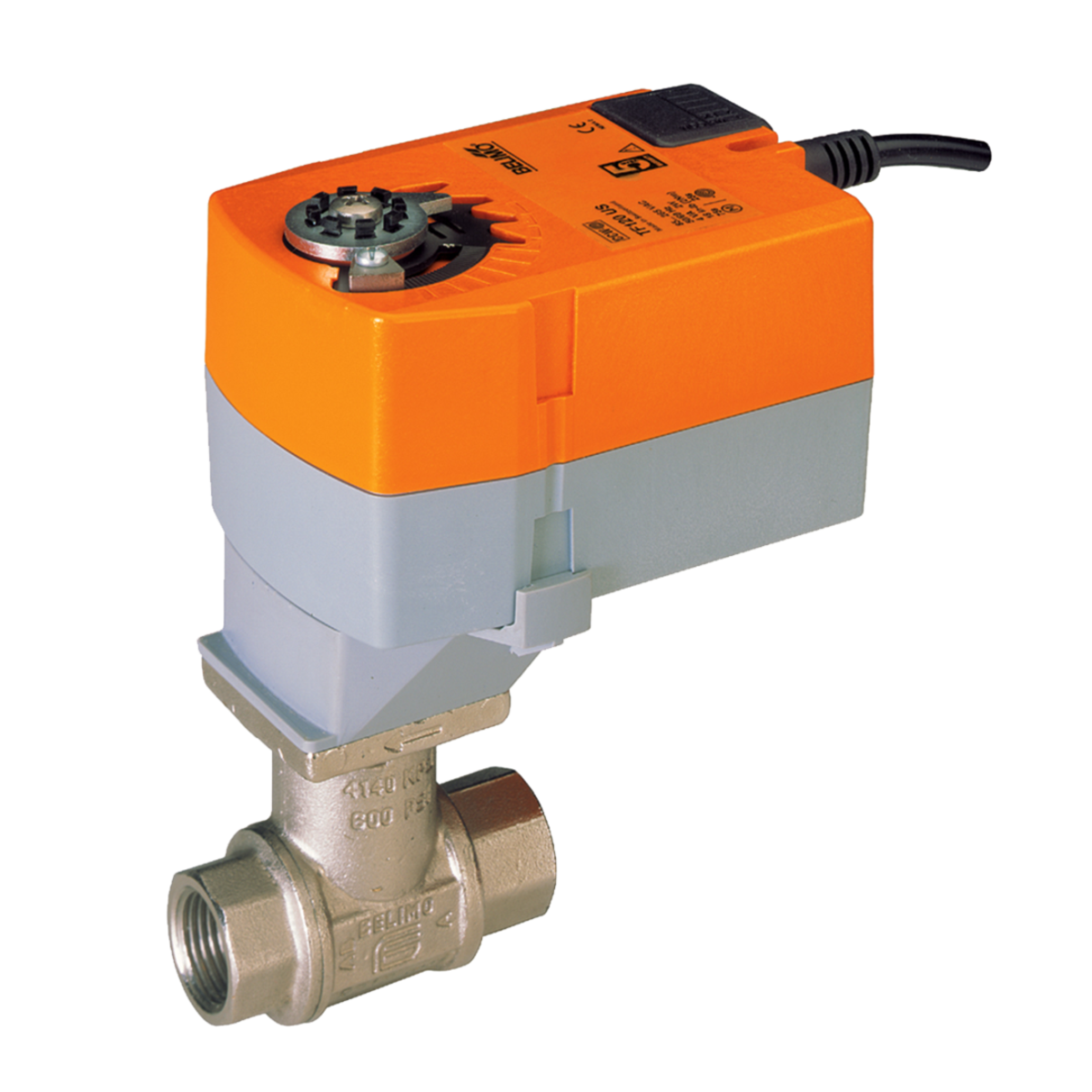

The BELIMO B210+TFRX24-SR is a characterized control valve assembly with a forged brass, nickel-plated brass body and stainless steel ball and stem. The direct-coupled actuator delivers 22 in-lb of torque and modulates with a spring return at 24 VAC, using a 2 to 10 VDC or 4 to 20 mA control signal. It is designed for use in air handling units and fan coil units.

  • Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
  • Valve Is Suitable In Use In A Hydronic System With Variable Flow
  • Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This Belimo control valve is maintenance-free and rated for water temperatures up to 250 F, making it ideal for HVAC systems with variable flow.

Product Information

Standard Information

  • Brand: BELIMO
  • Manufacturer Part Number: B210+TFRX24-SR
  • Country of Origin: United States
Technical Specifications
Housing
NEMA 2, IP42, UL Enclosure Type 2
Service
Chilled, Hot Water, Up To 60% Glycol
Power Consumption
2 W Running, 1 W Holding
Close-Off Pressure
200 psi
Flow Characteristic
Equal Percentage
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 10 ft. Or 16 ft. 18 GA Appliance Or Plenum Cable With 1/2 in. Conduit Connector
Brand
Belimo
MPN
B210+TFRX24-SR
Product Type
VALVE
Angle of Rotation
95
Cv
1.2
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5"
Actuator Type
Spring return
Control Type
DC 2...10 V
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Power Consumption (Holding)
1 W
Power Consumption (Running)
2 W
Running Time (Fail-safe)
<25 S
Running Time (Motor)
95 S
Voltage AC/DC
AC/DC 24 V
Runtime
95 Secs
Voltage
24V
Actuator
TFRX24-SR
Assembly
Assembly
Fail-Safe
Spring Return
Connection
NPT
Valve Type
Regular
Aux. Switch
1
Nema Rating
Nema 2
Valve Piping
2-Way
Feedback Signal
2-10vdc
Close-Off Rating
100 PSI
Body Pressure Rating
600 psi
Power Consumption For Wire Sizing
4 VA
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Torque
22 in-lb
Control Signal
Analog
Application
Chilled, Hot Water, up to 60% Glycol
Category
Electric Actuator Valve Assemblies
Control Input
Modulating
Control Valves Type
CCV
Cv / GPM
1.2 Cv
End Switch
Yes
Spring Return
Spring Return
Features and benefits
22 in-lbs [2.5 Nm] minimum | 95 seconds | 2 to 10 VDC, 0.5 mA max | NPT female ends | Forged Brass, Nickel Plated
